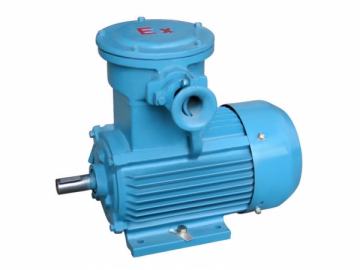

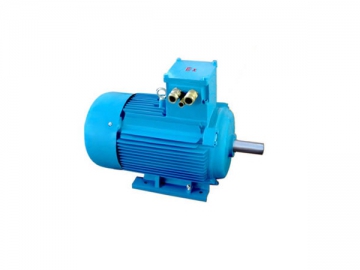

Explosion Proof Three-Phase Induction Motor

Explosion Proof Three-Phase Induction Motor
Explosion Proof Three-Phase Induction Motor
Request a Quote
Introduction

The YB2-H series of the explosion-proof three-phase induction motors is a completely enclosed fan-cooled induction motor of the squirrel-cage type. The motors are designed and manufactured according to national standards for electrical equipment in explosive working environments and are flameproof, high performing, and quiet. The squirrel cage motors drive marine machinery, such as pumps, ventilators, separators and hydraulic machines in working conditions where explosives or hazardous materials are present. The motors are in accordance with the following standards:
IEC60034    Rotating electrical machines
IEC60068   Basic environmental testing procedures
IEC60072   Dimensions and output ratings for rotating electrical machines
IEC60092   Electrical installation in ships

Construction
1. IP44 or IP56 (TEFC) protection
2. Cylindrical shaft extension. B3 and B35 motors with two shaft extensions are available upon request, but the second shaft extension can only transmit a rated output with direct coupling. The shaft is made of high grade steel No 45.
3. Terminal box is in full conformity with IEC publication 60034-8. Clearance between two neighboring conducting parts is not less than 8mm and all creepages is not less than 12mm. An extra terminal is provided inside the box for grounding.

Operating Conditions

Operating Conditions
Temperature of Ambient air: -20℃~ 45℃
Altitude: 0m
Relative humidity: ≤95%
Dew: exists
Salt mist: exists
Oil mist: exists
Fungus: exists
Shock: exists
Vibration: exists
Inclination and swing: ±22.5°
Rated Voltage: 380V or 440V
Rated Frequency: 50Hz or 60Hz
Connection: 3kW or Less Y,more than 3kW △
Duty Type: Continuous S1
Insulation: F
Rise of winding (resistance method): 80K
Permissible working temp of bearing: (thermometer method) 90℃

Main Technical Data
Mounting Arrangements
Mounting arrangements available for various frame sizes are shown in table 1.
Table 1
Frame Size Mounting Arrangements (IM)
80 ~ 160 B3, B5, B6, B7, B8, B35, V1, V3, V5, V6, V15, V36
180~225 B3, B5B35, V1
250 ~ 355 B3, B35, V1

Technical Data and Mounting and Overall Dimensions
Mounting and overall dimensions are shown in tables 2-5
Note: Data is for reference only and may change based on customizations. Contact us with any questions.

Table 2
Type Power kW Current A Type Power kW Current A Type Power kW Current A Type Power kW Current A
380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz
YB280M1-2-H 0.75 1.8 1.6 YB2355L-2-H 315 566 502 YB2315L2-4-H 200 361.3 318.9 YB2355M1-6-H 160 302.0 265.3
YB280M2-2-H 1.1 2.6 2.2 YB280M1-4-H 0.55 1.5 1.4 YB2355M-4-H 250 464 410 YB2355M2-6-H 200 377 331
YB290S-2-H 1.5 3.5 3.1 YB280M2-4-H 0.75 2.1 1.8 YB2355L-4-H 315 582 514.0 YB2355L-6-H 250 469 412
YB290L-2-H 2.2 4.9 4.3 YB290S-4-H 1.1 2.7 2.4 YB290S-6-H 0.75 2.2 2.0 YB2132S-8-H 2.2 5.8 5.2
YB2100L-2-H 3 6.2 5.4 YB290L-4-H 1.5 3.6 3.2 YB290L-6-H 1.1 3.2 2.9 YB2132M-8-H 3 7.6 6.8
YB2112M-2-H 4 8.2 7.2 YB2100L1-4-H 2.2 5.0 4.5 YB2100L-6-H 1.5 4.0 3.5 YB2160M1-8-H 4 10.5 9.1
YB2132S1-2-H 5.5 11 9.6 YB2100L2-4-H 3 6.8 5.9 YB2112M-6-H 2.2 5.8 5.2 YB2160M2-8-H 5.5 13.4 11.5
YB2132S2-2-H 7.5 14.6 12.9 YB2112M-4-H 4 8.9 7.7 YB2132S-6-H 3 7.2 6.4 YB2160L-8-H 7.5 17.7 15.5
YB2160M 1-2-H 11 21.6 18.7 YB2 132S-4-H 5.5 11.7 10 YB2132M1-6-H 4 9.5 8.2 YB2180L-8-H 11 25.6 22.2
YB2160M2-2-H 15 28.9 25.1 YB2132M-4-H 7.5 15.4 13.2 YB2132M2-6-H 5.5 12.5 10.7 YB2200L-8-H 15 33.3 29.2
YB2160L-2-H 18.5 35.7 30.3 YB2160M-4-H 11 22.6 19.5 YB2160M-6-H 7.5 17.1 14.8 YB2225S-8-H 18.5 40.3 35.6
YB2180M-2-H 22 42.2 36.9 YB2160L-4-H 15 30.5 26.3 YB2160L-6-H 11 25.0 21.7 YB2225M-8-H 22 47.4 41.7
YB2200L1-2-H 30 57.9 50.3 YB2180M-4-H 18.5 35.9 30.8 YB2180L-6-H 15 33.0 29.3 YB2250M-8-H 30 64.7 57.1
YB2200L2-2-H 37 69.4 60.3 YB2180L-4-H 22 42.2 36.9 YB2200L1-6-H 18.5 37.6 32.7 YB2280S-8-H 37 79.8 68.9
YB2225M-2-H 45 85.9 76.3 YB2200L-4-H 30 57.3 49.8 YB2200L2-6-H 22 44.7 38.9 YB2280M-8-H 45 94.8 80.8
YB2250M-2-H 55 103.2 91.7 YB2225S-4-H 37 70.2 60.3 YB2225M-6-H 30 61.1 53.1 YB2315S-8-H 55 113.5 98.59
YB2280S-2-H 75 139.2 120.9 YB2225M-4-H 45 84.0 73.4 YB2250M-6-H 37 71.0 61.3 YB2315M-8-H 75 152.1 132.0
YB280M-2-H 90 167.1 143.5 YB2250M-4-H 55 103.8 88.7 YB2280S-6-H 45 86.4 74.6 YB2315L1-8-H 90 179.3 155.6
YB2 315S-2-H 110 203.0 180.2 YB2280S-4-H 75 139.2 120 YB2280M-6-H 55 103.2 89.7 YB2315L2-8-H 110 218.4 189.6
YB2315M-2-H 132 242.3 215.1 YB2280S-4-H 90 164.3 141.9 YB2315S-6-H 75 141.1 123.9 YB2355M1-8-H 132 265 230
YB2315L 1-2-H 160 292.1 259.3 YB2 315S-4-H 110 200.8 177.3 YB2315M-6-H 90 168.6 148.1 YB2355M2-8-H 160 320 278
YB2315L 2-2-H 200 365.1 324.1 YB2315M-4-H 132 239.7 211.6 YB2315L1-6-H 110 205.4 180.4 YB2355L-8-H 200 399 347
YB2355M-2-H 250 451 401 YB2315L 1-4-H 160 289.0 255.1 YB2315L2-6-H 132 245.7 215.8
Ordering Information

Ordering Information
1. When placing an order, specify the motor’s type, output, number of poles, voltage, frequency, mounting arrangement and any other requirements.
2. Customized features include the double shaft extension, position of the terminal box, and the thermistor protection.
