Monel K-500 Nickel Alloy
- N05500
- 2.4375
The Monel K-500 nickel alloy has the same corrosion resistance as the Monel 400 but higher mechanical strength and hardness. The strengthened properties are achieved by the additions of aluminum and titanium to the nickel-copper base and by heating under controlled conditions. Monel alloy K-500 also has excellent resistance to high temperature corrosion and long term structure stability.
Typical applications for this nickel-copper super alloy and its products are turbine blades and gas turbine blades for aircraft engine, fasteners and springs for marine services, pump and valve components for chemical processing, doctor blades and scrapers for pulp processing in paper production, etc.
Stock and Supply of Various Nickel Alloys

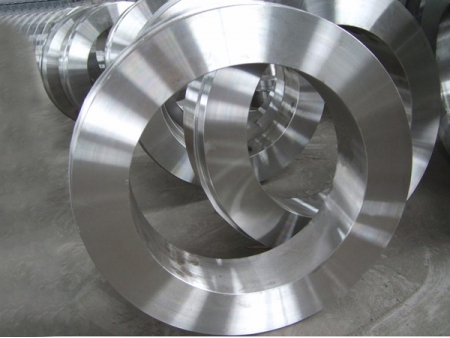

Common forms include tube, wire, bar, plate, etc.
-
Nickel Alloy Pipe & Tubing -

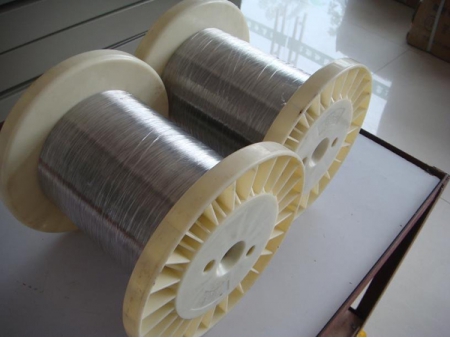

Nickel Alloy Wire -

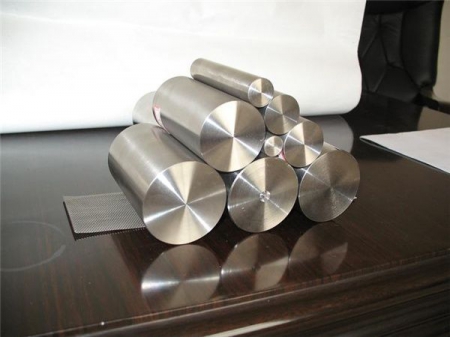

Nickel Alloy Bar
-
Nickel Alloy Coil -

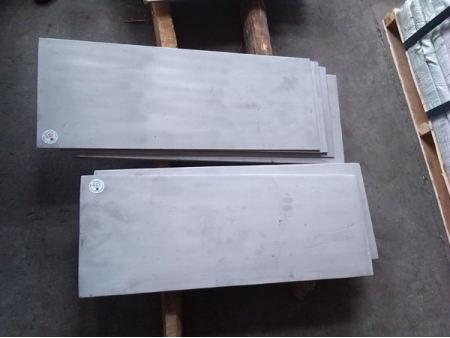

Nickel Alloy Sheet & Plate
| Ni 63.00% Min. | Cu 27.00%- 33.00% | Al 2.30%- 3.15% | Ti 0.35%- 0.85% | Fe 2.00% Max. |
| Mn 1.50% Max. | S 0.01% Max. | C 0.25% Max. | Si 0.50% Max. |
every aspect of materials testing, so our customers can achieve
consistent and accurate results, every time.
Providing High Nickel Alloys and High Performance Alloys
