Motorized Drum for Electric Winch (Ø240-800mm) Manufacturer

Motorized Drum for Electric Winch (Ø240-800mm)

Request a Quote

View All: http://conveyorpulley-roller.com/1-12-motorized-winch-drum.html

YTHZ/TDYZ

Traction drum used in winches for load pulling

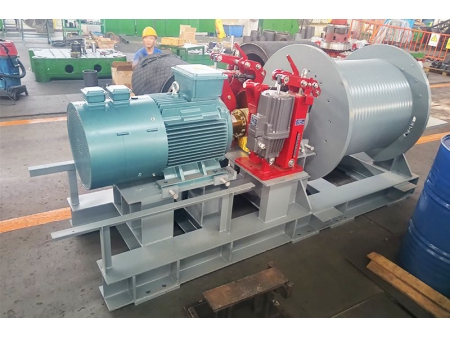

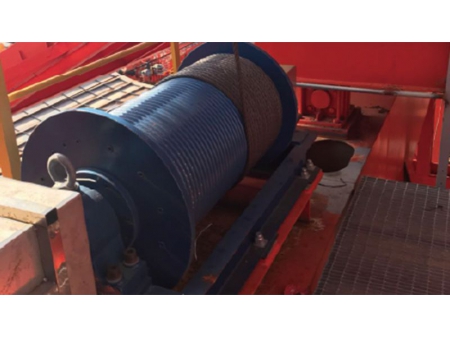

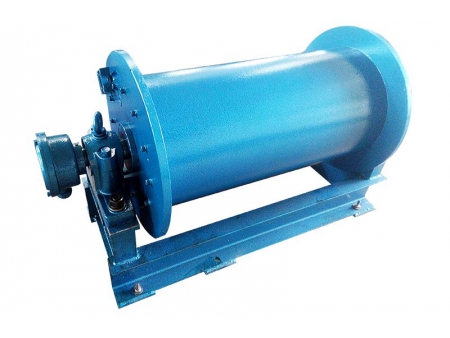

Motorized winch drum has a diameter ranging from Ø240 to Ø800 and a traction force of 1 to 15 tons. The drum surface can be treated with either a guiding spiral groove or a smooth surface. The types of brakes used include disc brakes, electric-hydraulic drum brakes, electromagnetic safety brakes, etc. Auxiliary devices are optional in cam limiters, overspeed switches, integrated brackets, wire ropes or cables, protective covers, etc.

Applications

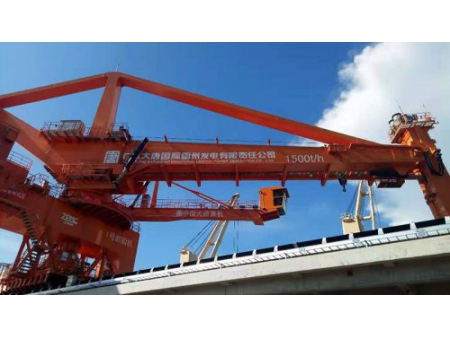

Motorized winch drum is used in port machinery, construction hoisting machinery, oil pumps, belt tensioning devices, belt replacement devices, large winch rope replacement devices, cable winding and unwinding equipment, etc.

Technical Data

Traction F kN	Average Rope Speed V m/s	Drum Diameter D mm	Min. Drum Length L mm
10	0.05～0.32	Ø240	450
15	0.05～0.32	Ø320	725
20	0.05～0.32	Ø400	840
50	0.1～0.32	Ø500	768
100	0.1～0.32	Ø630	840
150	0.1～0.32	Ø800	1070
