High Speed Net Knitting Machine
Request a Quote

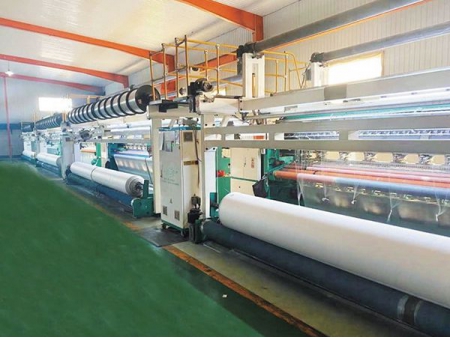

SMJ-III Raschel Machine
Raschel warp knitting machine for making net bags, mesh bags and vegetable bags
Applications
The mesh bags have good weaving effect and excellent breathability. They can also have added bag seal cord and are mainly used for packaging various vegetables and fruits.
Features
- Net knitting machine can process tape yarns and monofilaments.
- The raschel knitting machine has functions of automatically weaving a bag seal cord into the net and closing the net sides.
Specifications
- Needle type Block latch needle
- Gauge E2, E3
- Number of bars 9/11 bars
- Working width 210"/270"
- Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5530×6620×2500 | 36.65 | 10000 | 14.05 | |
| 7500×6620×2500 | 46.67 | 15000 | 16.3 |
