High Speed Net Knitting Machine
Request a Quote
GE295 Raschel Machine

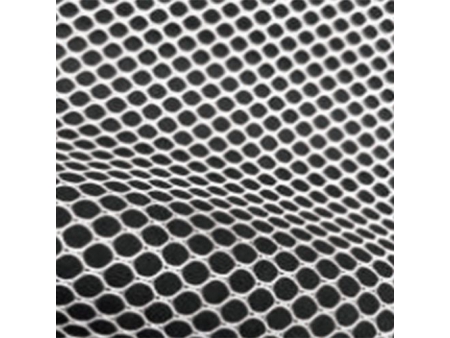

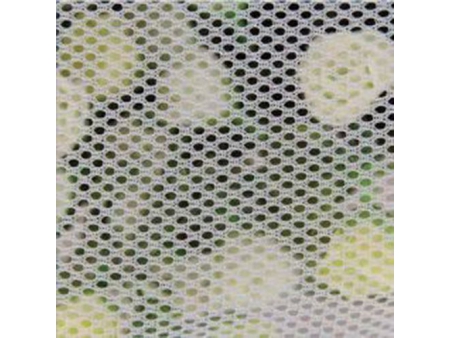

Raschel warp knitting machine for producing air mesh fabric used for shoes, apparel, upholstery and furniture cover
Processing materials
Weaving plain fabrics and mesh fabrics made from natural fibers, synthetic fibers, metal wires, aerospace-grade fiberglass, and other materials.
Applications
Shoe, apparel textiles, home textiles, luggage, linings, etc.
Features
- High speed net knitting machine utilizes an oil-immersed cam-linkage mechanism.
- Net knitting machine uses short latch needles for fast operation and high fabric output speed.
- The warp knitting machine adopts an adjustable needle bar swing arm form.
- The high speed net knitting machine is equipped with electronic yarn let-off (EBA), electronic take-up, and electronic batching functions.
Specifications
- Needle type Block latch needle
- Gauge E6-E24
- Number of bars 2-6 bars
- Working width 90"/138"/175"/240"/260"
- Max. speed 700 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3000×2350×2800 | 7.05 | 7500 | 9.5 | |
| 3560×2350×2800 | 10.86 | 8000 | 10.25 | |
| 5640×2350×2800 | 12.78 | 8000 | 11.25 | |
| 8050×4850×3300 | 39.04 | 10000 | 16.25 | |
| 10800×2300×2600 | 41.47 | 12000 | 18.25 |
