3-layer Air Bubble Film Extrusion Line Manufacturer

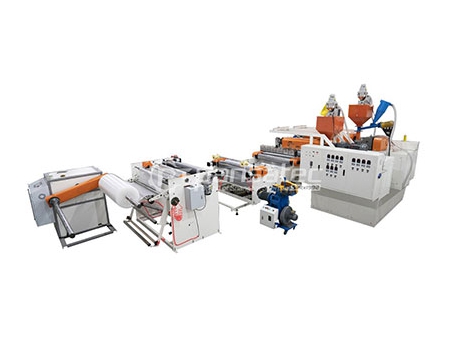

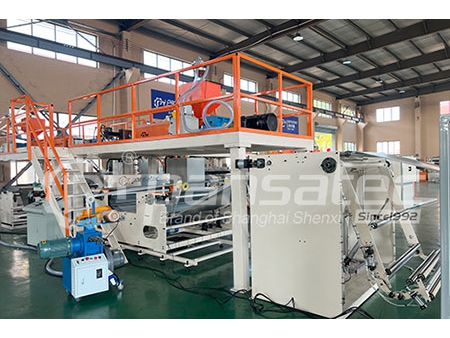

3-layer Air Bubble Film Extrusion Line

Request a Quote

View All: http://bubblefilmwrap.com/1-2-3-layer-air-bubble-film-extrusion-line.html

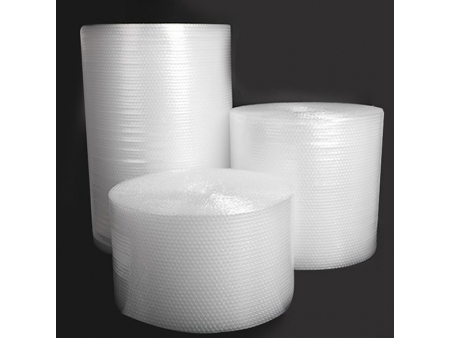

Our 3-layer air bubble film extrusion line is able to produce both 2 layers and 3 layers bubble film rolls.

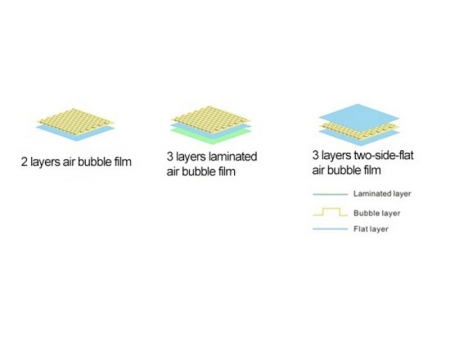

Structure Diagram of 2-layer/3-layer Air Bubble Film

Features

Able to produce both 2-layer and 3-layer bubble film;
Production speed can reach 35meter per minute, high productivity with less labor cost;

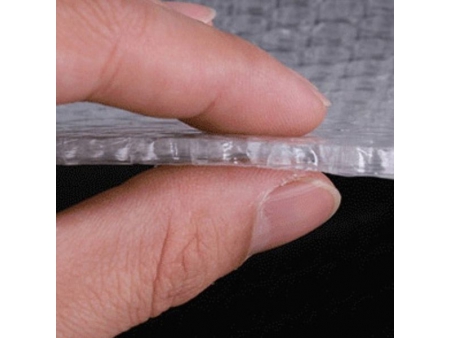

Produced bubble film features high resistance to bursting, the thickness can reach 30GSM;
24-hour continuous running, high reliability and easy to operate;
Stable production process, long service life;

Details

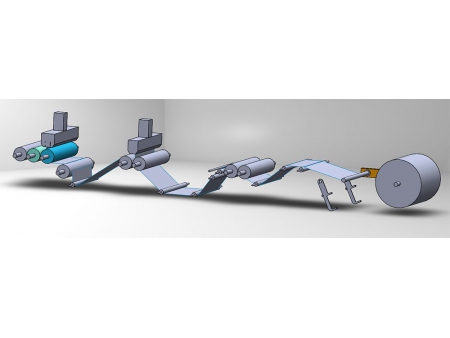

3D Process Flow Diagram

Specifications

Model: PT-L3-S3-W1200
Bubble film width (mm): 1200
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 85 – 140
Thickness (g/m²): 38- 300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 82
Operation power (kW): 40
Installation power (kW): 122
Dimension (L×W×H) (m): 10×5.5×2.5
Weight (kg): 6500

Model: PT-L3-S3-W1600
Bubble film width (mm): 1600
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 100 – 170
Thickness (g/m²): 38 – 300
Main screw diameter (mm): Φ65(x2)
Sub screw diameter (mm): Φ50
Heating power (kW): 104
Operation power (kW): 51
Installation power (kW): 146
Dimension (L×W×H) (m): 10×6.5×2.5
Weight (kg): 7200

Model: PT-L3-S3-W2000
Bubble film width (mm): 2000
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 125 – 200
Thickness (g/m²): 40 – 300
Main screw diameter (mm): Φ75(x2)
Sub screw diameter (mm): Φ65
Heating power (kW): 136
Operation power (kW): 66
Installation power (kW): 201
Dimension (L×W×H) (m): 11×7.0×2.5
Weight (kg): 8000

Model: PT-L3-S3-W2600
Bubble film width (mm): 2600
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 145 – 220
Thickness (g/m²): 45 – 300
Main screw diameter (mm): Φ80(x2)
Sub screw diameter (mm): Φ75
Heating power (kW): 155
Operation power (kW): 75
Installation power (kW): 245
Dimension (L×W×H) (m): 12×8.0×2.5
Weight (kg): 9500

Model: PT-L3-S3-W3000
Bubble film width (mm): 3000
Material: LDPE/LLDPE
Line speed (m/hr): 600 – 2100
Capacity (kg/hr): 180 – 260
Thickness (g/m²): 45-300
Main screw diameter (mm): Φ90(x2)
Sub screw diameter (mm): Φ80
Heating power (kW): 180
Operation power (kW): 86
Installation power (kW): 298
Dimension (L×W×H) (m): 12×8.7×2.5
Weight (kg): 12000

Model	PT-L3-S3-W1200	PT-L3-S3-W1600	PT-L3-S3-W2000	PT-L3-S3-W2600	PT-L3-S3-W3000
Bubble film width (mm)	1200	1600	2000	2600	3000
Material	LDPE/LLDPE	LDPE/LLDPE	LDPE/LLDPE	LDPE/LLDPE	LDPE/LLDPE
Line speed (m/hr)	600 – 2100	600 – 2100	600 – 2100	600 – 2100	600 – 2100
Capacity (kg/hr)	85 – 140	100 – 170	125 – 200	145 – 220	180 – 260
Thickness (g/m²)	38- 300	38 – 300	40 – 300	45 – 300	45-300
Main screw diameter (mm)	Φ65(x2)	Φ65(x2)	Φ75(x2)	Φ80(x2)	Φ90(x2)
Sub screw diameter (mm)	Φ50	Φ50	Φ65	Φ75	Φ80
Heating power (kW)	82	104	136	155	180
Operation power (kW)	40	51	66	75	86
Installation power (kW)	122	146	201	245	298
Dimension (L×W×H) (m)	10×5.5×2.5	10×6.5×2.5	11×7.0×2.5	12×8.0×2.5	12×8.7×2.5
Weight (kg)	6500	7200	8000	9500	12000
