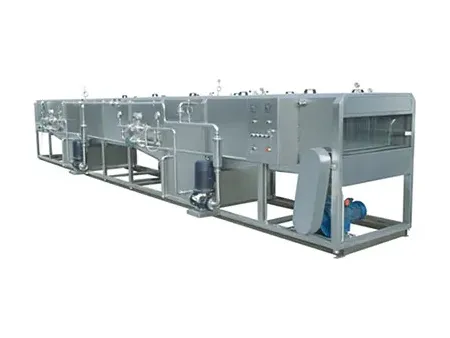

Tunnel Pasteurizer

Request a Quote

View All: http://cnfoodmachines.com/1-2-6-tunnerl-pasteurizer.html

Continuous spraying type tunnel pasteurizer is designed with 4-stage pasteurization process: circulating warm water for preheating, circulating hot water for pasteurization, circulating warm water for pre-cooling, and cooling water for spraying. The pasteurization equipment features automatically controlled pasteurization temperature and steplessly adjustable pasteurization time. It can be designed according to the pasteurization conditions and output provided by the clients.

Applications

The tunnel pasteurizer is suitable for the pasteurization and cooling of food, beverage and condiments packed in bottles, jars, cans, pouches or trays.

Technical parameters

Model	PLS-1000	PLS-2000	PLS-3000	PLS-5000
Max. Pasteurization temperature	100℃
Pasteurization conveyor width	1500mm
Conveyor speed	110-553mm/min(stepless speed)
Steam pressure	0.4MPa
Length of pasteurization section(mm)	9000mm	16000mm	22000mm	320000mm
Length of pre-cooling section(mm)	1200mm	16000mm	1800mm	2200mm
Length of cooling section(mm)	3000mm	5000mm	8000mm	10000mm
Hot water recycle capacity(m3)	21m3	25 m3	35 m3	50 m3
Power（kW）	9.6kw	10.6kw	13.6kw	16.5kw
Size（mm）	9880mm	17880mm	23800mm	34880mm
	2250mm
	1735mm
