22kw DEUTZ Air-Cooled Diesel Generator Sets
Request a Quote
View All: http://deutzchbdp.com

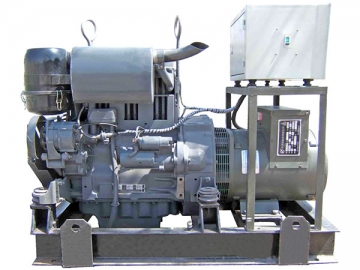

General Image
Professional 22KW Genset Diesel Generator, Deutz Engine, Meccalte/Stamford.etc ALternator, Deep Sea Control Panel
| Generator-set | Diesel Engine (DEUTZ) | Alternator (Stamford) | |||
| Model | 20GF | Model | F3L912D | Model | XN184H,XN184F |
| Rated prime power | 20KW | Prime power | 24KW | Rated power | 12KW,10.8KW |
| Standby power | 22KW | Stand power | | Rated voltage | 220V,400/230V |
| Rated voltage | 220V 、 400/230V | Rated speed | 1500rpm | Efficiency | 82.9% 、 85.7% |
| Rated currency | 52A 、 36A | No. of Cylinder | 3 | Rated current | 52A 、 36A |
| Power factor | 1.0 、 0.8 | Bore/stroke | Line | Power factor | 1.0 、 0.8 |
| Steady state volt deviation | ≤±5 | Cylinder arrangement | 100/120 | Frequency | 50Hz |
| Steady state frequency | ≤2.5 | Fuel consumption | 232g /kwh | Protection/ insulation | IP23/H |
| Frequency drop scope | ≤8 | Start mode | 12V electrical | Exciting way | brushless self-exciting |
| Phase | One/three phase | Governor | mechanical | Weight | 130kg 、 150kg |
| Dimension (mm) | 1300×720×1100 1350×770×1100 | Aspiration type | Naturally aspirated | | |
| Weight | 560kg 、 580kg | Cooling way | air cooled | ||
| Displacement | 2.828L | ||||
| Weight | 275kg | ||||
| Type | Generator Set 20GF |
| Place of Origin | China ( Deutz License Manufacturer) |
| Brand Name | Deutz Engine |
| Output Capacity | 25 KVA |
| Output Power | 20 kW |
| Frequency | 50Hz /60Hz |
| Cooling Type | Air Cooled |
| Alternator | Meccalte /Stamford/or customerized |
| Optional | silent type / o pen type /water-proof type |
| Certification | ISO |
