Description

TYF-16B stationary construction wall panel production plant is applicable for the production of two-side calcium silicate board lightweight compound wall panel or GRC lightweight wall panel and the suitable materials include cement, fly ash, EPS polystyrene particles, sand and ceramsite. 10 pieces of panels can be molded one time.

It adopts stationary type design so that the operation is much easier and it can also reduce investment cost and lower the failure rate. However, it has certain requirements for the site.

Researched and developed independently by TANY, the whole production line is equipped with automatic configuration of large-scale stirring system, mobile grouting system and integral panel demoulding and flipping palletizing system. Aggregate conveying and measuring functions are added to this production line, contributing to precise material ratio and high molding efficiency. Besides, the operations are much easier and labor intensity and cost can be largely decreased.

Patent number: ZL201320164478.9

Specifications of produced wall panels
(1) Lightweight compound wall panel
One-time molding quantity Thickness Width Length
10 75mm 610mm 2440mm/3000mm
10 90mm
8 120mm
6 150mm
(2) Lightweight hollow wall panel
One-time
 molding
quantity
Core tube
diameter
Core
 tubequantity
Thickness Width Length
10 Φ38mm 90 75mm 600/610mm Adjustable within 3000mm
10 Φ52mm 70 90mm
8 Φ74mm 40 120mm
6 Φ52mm 84 150mm

Note: The above dimensions are normal ones. TANY can provide customized production lines according to your requirements for special wall panel sizes.

Main equipment

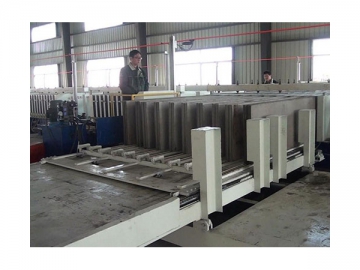

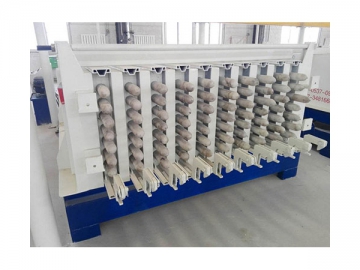

  • (1) Wall panel molding machine

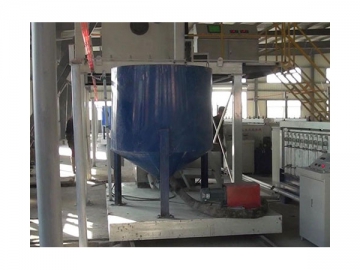

  • (2) Foam stirring system

  • (3) Mobile grouting system

  • (4) Mobile automatic stacking machine (Panel demoulding)
