Request a Quote
View All: http://aircomprs.com/1-2-fixed-speed-screw-compressor-two-stage.html
  • Air Displacement (m³/min): 5.9～52.9
  • Discharge Pressure (MPa/Bar): (0.7/7)/(0.8/8)/(1.0/10)
  • Power (kW): 37～250 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • R-E50
    Two Stage Fixed Speed Screw Compressor 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    6.9/0.7/7 6.7/0.8/8 5.9/1.0/10 244/102 237/116 208/145 37/50 1740*1150*1600
  • R-E75
    Two Stage Fixed Speed Screw Compressor 55kW/75HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    11.9/0.7/7 10.9/0.8/8 9.4/1.0/10 421/102 385/116 332/145 55/75 2100*1400*1740

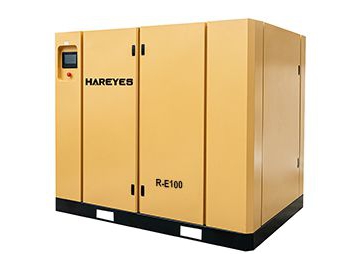

  • R-E100
    Two Stage Fixed Speed Screw Compressor 75kW/100HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    15.9/0.7/7 14.2/0.8/8 12.4/1.0/10 562/102 502/116 438/145 75/100 2100*1400*1740

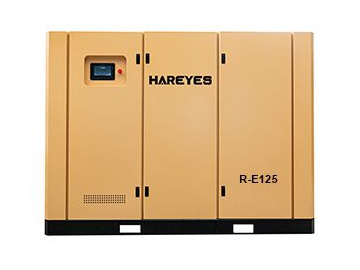

  • R-E125
    Two Stage Fixed Speed Screw Compressor 90kW/125HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    19.4/0.7/7 18.4/0.8/8 16.1/1.0/10 686/102 650/116 567/145 90/125 2540*1470*1840
  • R-E150
    Two Stage Fixed Speed Screw Compressor 110kW/150HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    22.9/0.7/7 21.4/0.8/8 19.0/1.0/10 809/102 756/116 671/145 110/150 2540*1470*1840

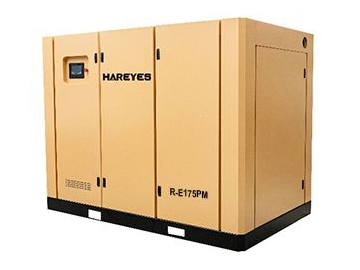

  • R-E175PM
    Two Stage Fixed Speed Screw Compressor 132kW/175HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    28.2/0.7/7 26.9/0.8/8 23.4/1.0/10 997/102 951/116 827/145 132/175 2540*1470*1840
  • R-E200
    Two Stage Fixed Speed Screw Compressor 160kW/200HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    31.7/0.7/7 30.5/0.8/8 28.2/1.0/10 1120/102 1078/116 996/145 160/200 2930*2040*2140
  • R-E250
    Two Stage Fixed Speed Screw Compressor 185kW/250HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    40.5/0.7/7.0 38.2/0.8/8.0 32.4/1.0/10 1431/102 1350/116 1145/145 185/250 2930*2040*2140
  • R-E275
    Two Stage Fixed Speed Screw Compressor 200kW/275HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    42.7/0.7/7.0 40.7/0.8/8.0 34.5/1.0/10 1509/102 1438/116 1219/145 200/275 3340*2120*2440
  • R-E300
    Two Stage Fixed Speed Screw Compressor 229kW/300HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Motor Power
    ( kW/HP)     		Dimensions Length*Width*Height
    (mm)
    45.9/0.7/7.0 43.9/0.8/8.0 38.4/1.0/10 1622/102 1551/116 1357/145 220/300 3340*2120*2440
Model R-E50 R-E75 R-E100 R-E125 R-E150 R-E175PM R-E200 R-E250 R-E275 R-E300 R-E350
Air Displacement @ Pressure
(m³/min @ MPa/Bar) 		6.9/0.7/7 11.9/0.7/7 15.9/0.7/7 19.4/0.7/7 22.9/0.7/7 28.2/0.7/7 31.7/0.7/7 40.5/0.7/7.0 42.7/0.7/7.0 45.9/0.7/7.0 52.9/0.7/7.0
6.7/0.8/8 10.9/0.8/8 14.2/0.8/8 18.4/0.8/8 21.4/0.8/8 26.9/0.8/8 30.5/0.8/8 38.2/0.8/8.0 40.7/0.8/8.0 43.9/0.8/8.0 50.4/0.8/8.0
5.9/1.0/10 9.4/1.0/10 12.4/1.0/10 16.1/1.0/10 19.0/1.0/10 23.4/1.0/10 28.2/1.0/10 32.4/1.0/10 34.5/1.0/10 38.4/1.0/10 44.9/1.0/10
Air Displacement @ Pressure
(CFM @ PSI) 		244/102 421/102 562/102 686/102 809/102 997/102 1120/102 1431/102 1509/102 1622/102 1869/102
237/116 385/116 502/116 650/116 756/116 951/116 1078/116 1350/116 1438/116 1551/116 1781/116
208/145 332/145 438/145 567/145 671/145 827/145 996/145 1145/145 1219/145 1357/145 1587/145
Compression Stage Two-stage
Cooling Method Air cooling (water cooling available)
Discharge Temperature (℃) ≤40
Volume of Lubricant (L) 32 54 72 90 125 180
Noise Level dB(A) 73±2 75±2 78±2 80±2
Drive Method Direct drive
Power
( kW/HP) 		37/50 55/75 75/100 90/125 110/150 132/175 160/200 185/250 200/275 220/300 250/350
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Dimensions Length (mm) 1740 2100 2100 2540 2540 2540 2930 2930 3340 3340 3340
Width (mm) 1150 1400 1400 1470 1470 1470 2040 2040 2120 2120 2120
Height (mm) 1600 1740 1740 1840 1840 1840 2140 2140 2440 2440 2440
N.W. kg 1100 1780 1890 2650 2900 3100 3850 4200 5200 5700 6000
Outlet Diameter (inch/mm) G2" G2-1/2" DN80 DN100

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Features

  • Stability and Efficiency

    Our fixed-speed two-stage screw air compressor excels in stability, high efficiency, minimal oscillation, and low noise levels.

  • Two-Stage Airend

    Equipped with a high-performance two-stage airend, it delivers increased free air delivery, high efficiency and reliable operation.

  • Lubrication

    The injected lubricating oil serves multiple purposes, including sealing, cooling, noise reduction, and lubrication.

  • Energy-Efficient Coupling

    This screw compressor uses a coupling connection for increased energy efficiency.

  • Cooling Options

    Choose between water-cooled and air-cooled systems to suit your environment.

  • Robust Cooling System

    The plate fin structure and high-quality materials of our cooling system ensure pressure durability, high cooling efficiency, and corrosion resistance.

  • IE3 Motor

    The IE3 motor enhances energy efficiency and is suitable for harsh conditions, including dusty and high-temperature environments.

  • Quality Oil Separator Design

    Reduces oil content in the compressed air, minimizing pressure loss and extending lifespan.

  • Shutdown Protection

    Ensures motor safety by preventing overheating.

  • Overload Protection

    Protects the motor from overloading.

  • Pressure Relief System

    A safety feature to prevent overpressure.

  • Enhanced Vibration Dampeners

    Optimized shock absorption to reduce vibration and noise.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
