Home Elevator

Request a Quote

View All: http://elevator-manufacturer.com/1-2-home-elevator.html

Home elevators fully respect the integrity of the building and adopt user-friendly designs. They only require a standard 220V voltage to enjoy a low-energy consumption braking system of 1.1KW. To cater to personalized needs, FUJI offers exclusive custom elevators, which comprehensively enhance the value of the house. Home elevators do not require special shafts and can be quickly and conveniently installed in homes during the construction phase or at any time thereafter.

Applications

Villa elevator
Small building elevator
Self-built house elevator

Load capacity
260kg, 320kg, 400kg, 450kg
Speed
0.25m/s, 0.3m/s, 0.4m/s, 0.5m/s, 0.6m/s, 0.75m/s, 1.0m/s
Stops
2 to 8

Persons
1 to 8
Machine room
small machine room or machine room-less

Features
Models
Dimensions

Features

Smooth start, quiet operation

The drive, acceleration, chain, and tread components are constructed according to European design and quality standards, with minimal transmission amplitude, ensuring a long service life.
Safe and reliable

Reasonable machine room layout maintains sufficient maintenance space. Parts tested for reliability ensure the stable operation of the elevator.
Automatic interior lighting

Utilizes automotive automatic lighting technology, automatically turning off lights and turning on when needed, making it more energy-efficient.

General Specifications of Our Elevator Cabins

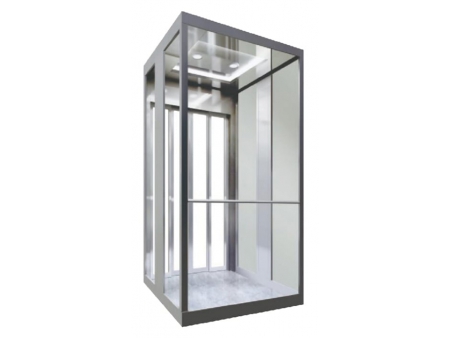

FJ-V04 Home Elevator

Ceiling: Hairline stainless steel with hidden light strips
Three-sided car wall: Laminated tempered glass 304 hairline stainless steel
Front wall/Door header: 304 hairline stainless steel
Handrail: Hairline stainless steel, cylindrical shape
Flooring: Standard PVC (optional marble)

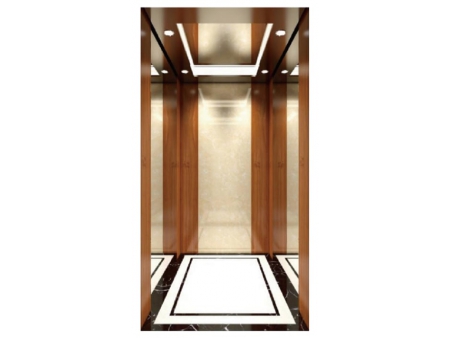

FJ-V05 Home Elevator

Ceiling: Titanium gold mirror stainless steel, acrylic top panel
Car: Artistic paint-free panel mirror
Flooring: Standard PVC (optional marble)

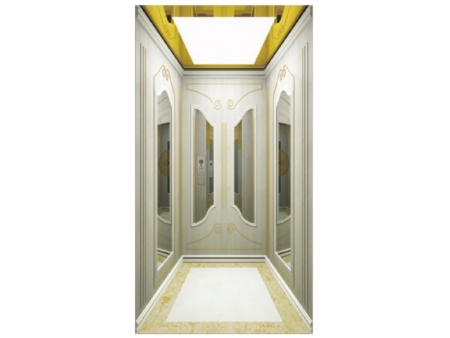

FJ-V06 Home Elevator

Ceiling: Stainless steel frame with hidden LED light
Rear wall center panel: marble
Rear wall auxiliary panel/ Side wall auxiliary panel/ Front wall/Door header: 304 hairline stainless steel
Side wall center panel: 304 mirror stainless steel
Handrail: Hairline stainless steel, cylindrical shape
Flooring: Standard PVC (optional marble)

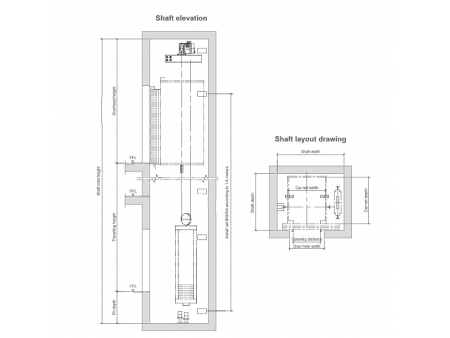

Dimensions

Persons	Rated capacity (kg)	Rated speed (m/s)	Car size (mm) C.W×C.D× D.H	Door size (mm) D.W× D.H 2P Central opening	Shaft size (mm)
Persons	Rated capacity (kg)	Rated speed (m/s)	Car size (mm) C.W×C.D× D.H	Door size (mm) D.W× D.H 2P Central opening	H.W× H.D	HR.H (mm	PIT (mm)
3	260	0.25-1.0	800×1150×2200	700×2000 (Side opening)	1400×1500	3500	800
4	320	0.25-1.0	950×1300×2200	700×200	1600×1600	3500	800
5	400	0.25-1.0	1200×1300×2200	800×2000	1850×1600	3500	800

—

What is a machine room elevator?

Machine room elevators are elevators that require a separate machine room to house the elevator traction machine or hydraulic system. Machine room elevators are typically used in commercial and high-rise buildings, where the elevator system is installed inside the machine room.

—

For home & residential elevators, should you choose a machine room elevator or a machine room-less elevator?

For space-constrained villas or low-rise commercial residences, a machine room-less home elevator is undoubtedly a better choice. They allow for flexible installation, thereby improving space utilization and saving on power consumption and elevator maintenance costs.

Why Choose FUJI Elevator for an Elevator for your home?

Providing a safe and comfortable experience for tens of millions of users in over 70 countries globally.
Our professional team offers customized design, manufacturing, and installation services.
Service & maintenance plans available after installation
Wide variety of elevator types & design options to suit your needs & home
