This product has been discontinued and removed from our shelves.

The suction and discharge hose is specially designed for LPG/LNG offshore transfer applications. LPG hose construction can be made depending on the product being transferred and the operational parameters.

Construction
Tube: NBR
Reinforcement layer: High tensile textile cord with helix steel wire
Cover: NBR CR
Safety factor: 5:1

Temperature Range
-40℃-80℃

Technical Parameters

I.D O.D Working Pressure Burst Pressure Weight Length
mm inch mm psi bar psi bar kg/m ft m
25 1" 38 150 10 750 50 0.93 196 60
32 1-1/4" 45 150 10 750 50 1.25 196 60
38 1-1/2" 51 150 10 750 50 1.47 196 60
50 2" 64 150 10 750 50 1.92 196 60
64 2-1/2" 78 150 10 750 50 2.51 196 60
76 3" 93 150 10 750 50 2.9 196 60
102 4" 118 150 10 750 50 3.92 196 60
125 5" 145 150 10 750 50 6.99 196 60
152 6" 174 150 10 750 50 8.99 196 60

Note: Specifications can be made upon request.

Certificates

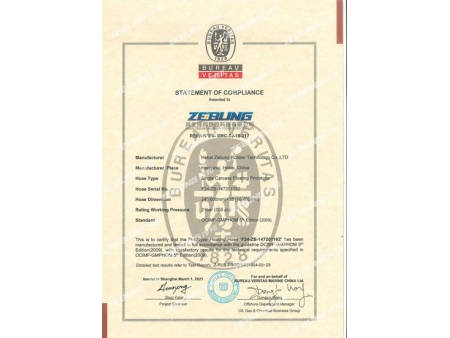

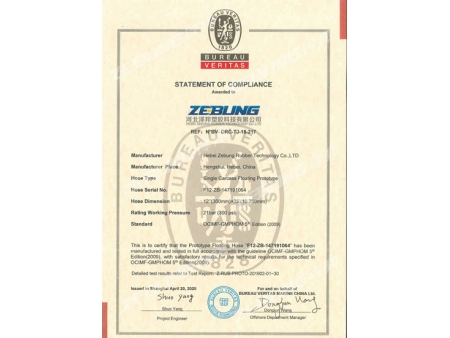

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)
  • BV Test Report (Single Carcass Floating Prototype-DN600mm)

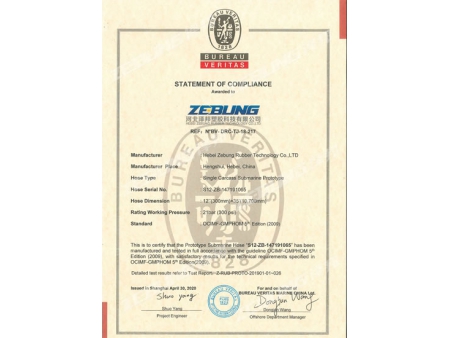

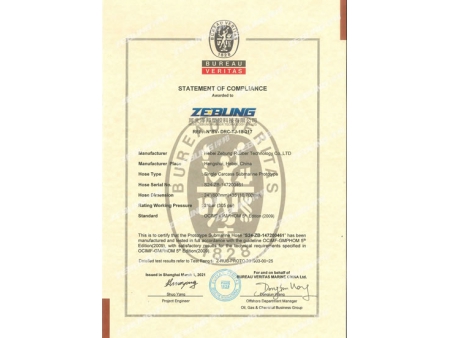

  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)

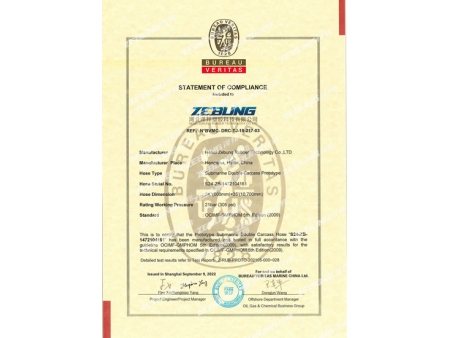

  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)

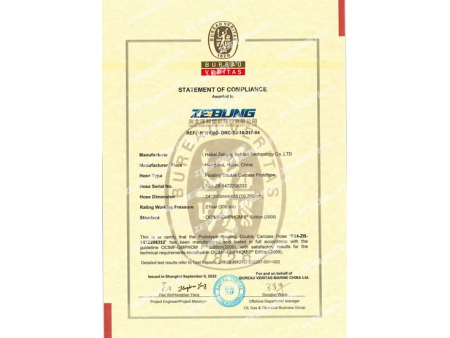

  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
