Multi-blade Rip Saw with Chain Feeding Manufacturer

Multi-blade Rip Saw with Chain Feeding

Request a Quote

View All: http://spcflooring-machine.com/1-3-1-1-multi-blade-rip-saw-with-chain-feeding.html

PVC/WPC/SPC/Wood Floor Panel Cutting Machine

The multi-blade rip saw with chain feeding offers a maximum capacity of 14 plates/min and two profiling machines, with no need for post-processing after forming. The rip saw enjoys a swift change of saw blades. With the main spindle on the table, the stability of plate processing is guaranteed, and the precision of straightness reaches ± 0.1 mm/extension meter.

Product Dimension

Width range: 1000-1300 mm
Length range: 1000-1800 mm
Thickness range: 2-10 mm

Characteristic

Chain guide rails facilitates the rip saw processing and safeguard the exactness and cleanness of the product.
The rip saw frame is constructed out of aviation aluminum, making it both lightweight and compact.
The table top is made of a high polymer resin that is resistant to wear and deformation.
For products to remain straight, the saw is equipped with efficient compaction processing and usage of supplementary compaction platforms.

Technical Parameters

Feed drive unit	3.7 kW×4P 1 unit Inverter Control
Feeding speed	8 ~ 40 m/min
Main spindle	22 kW×2P 1 unit 3000 rpm
Main spindle up-down	0.4 kW×4P
Roller brush	Nylon brush Ø160×1300 kW 0.75 kW×4P 1 unit
Tool size	O.D Ø250 mm×I.D Ø 90 mm×2.4 mm (Saw kerf)×60 (teeth)
Dust collector diameter	Ø150 mm (Connection caliber Ø150 )

Details

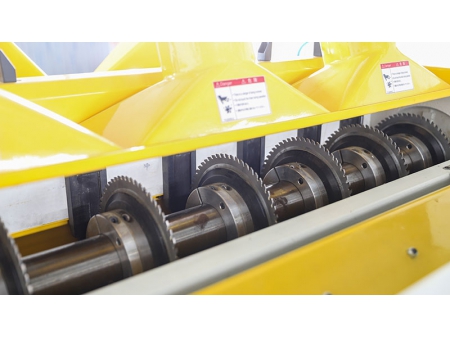

Rip saw

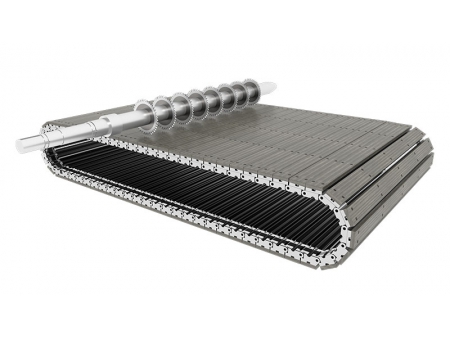

The chain feeding system, aviation aluminum frame with polymer resin table.

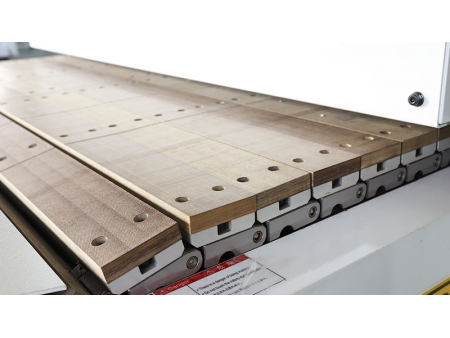

Chain guide rail feeding, table top sawing allowing for safe production
