Full-Width Weft Insertion Warp Knitting Machine
Request a Quote
GE2269
Warp knitting machine with parallel weft insertion for producing engineered fabrics
Applications

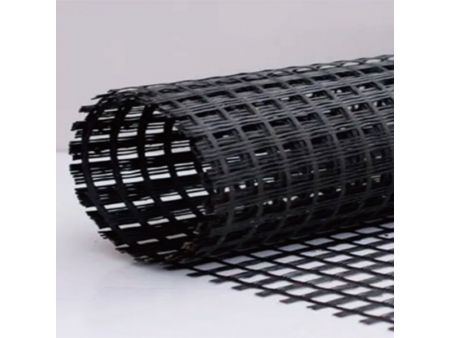

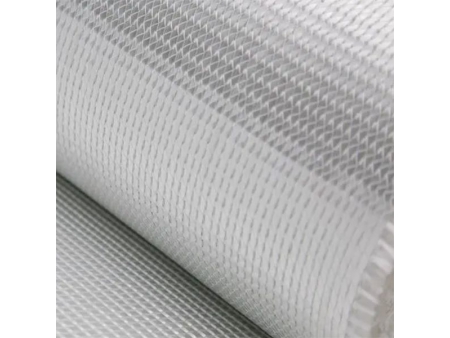

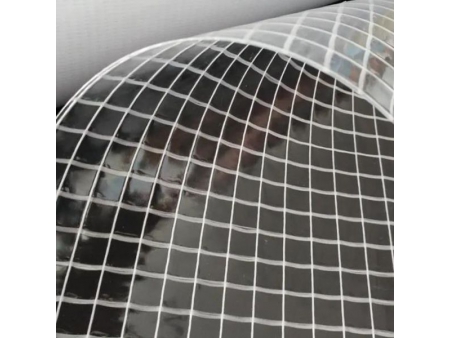

Lining fabric, lightbox fabric, geotextiles, fiberglass and other engineering fabrics used in apparel, construction, bridge repair, advertising fabric, reinforced composites, coated base fabrics, and geotechnical engineering, among other fields.
Features
- Parallel weft insertion system
- Course-oriented weft-insertion system
Specifications
- Needle type Compound needle, weft push needle
- Gauge E5, E6, E18, E24
- Number of guide bars 2 guide bars
1 guide bar 1 weft knitting bar
2 guide bar 1 weft knitting bar - Working width 245"/268"
- Weft laying system Yarn laying carriage (can carry 30 bobbins)
- Max. speed 1500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2269-245" | GE2269-245" | GE2269-245" | GE2269-245" | GE2269-245" |
| 6500×4500×2500 | 6500×4500×2500 | 6500×4500×2500 | 6500×4500×2500 | 6500×4500×2500 |
