102A Egg Grader (5,400 EGGS/HOUR)
The ZENYER 102A egg grader is made of carbon steel with plastic coating process. This egg grading machine sorts eggs into 5 sizes, with an accuracy of within ±1 gram and has the capacity of 5,400 eggs/hour. It can also be attached with a to set up an egg processing line.
ZENYER provides different egg grader models with egg feeding unit on either the left or the right side.
| Name | Egg Grader |
| Product Code | 102A |
| Model | ZYF-J3-L(R) |
| Material | Carbon steel |
| Capacity | 5,400 eggs/hour |
| Accuracy | ±1 gram |
| Grade* | 5 |
| Feeding lines | 3 |
| Power* | 0.38KW (includes candling) |
| Voltage* | 220V-240V, 50HZ, single phase |
| Dimension (L*W*H) | 1.85*1.6*1M |
| Net weight* | 220KG |
| Gross weight* | 300KG |
| Function | Egg grading & candling |
- Egg loading
- Candling
- Egg printing (Optional)
- Grading
- Manual collection table
-Place eggs on the feeding unit manually.

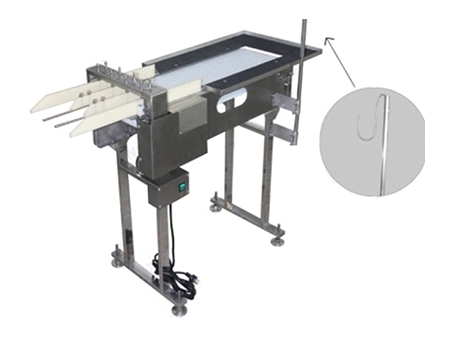

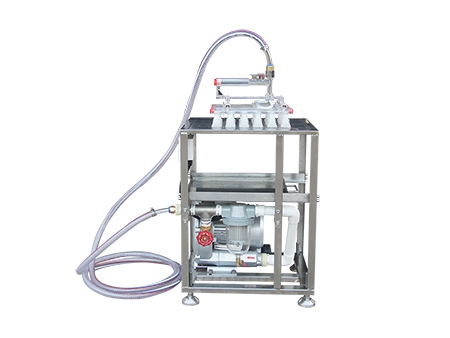

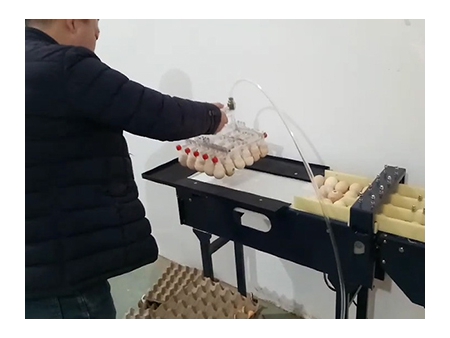

-Or connect and use to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 3 rows and transferred into the feeding unit.
Eggs are transported to the candling unit through the roller of the feeding unit. You can check for any leaking, dirty, cracked eggs through candling light by eyes, and manually take them out.

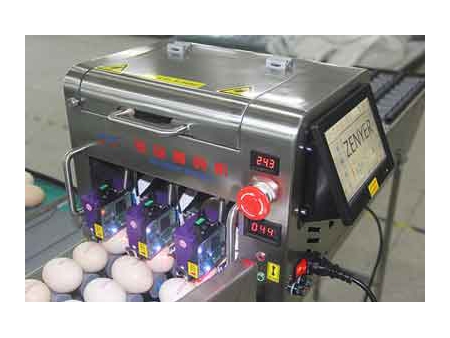

ZENYER (3-print head) is an optional attachment to print the name, logo, date, Julian date, etc. on eggs.

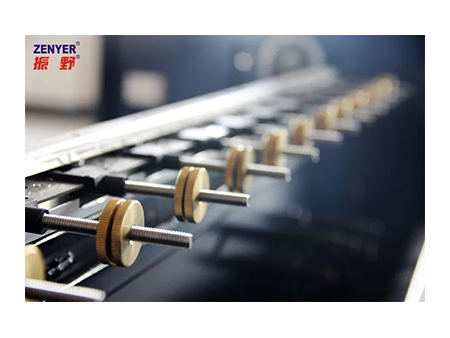

Eggs are weighed and graded into 5 grades.

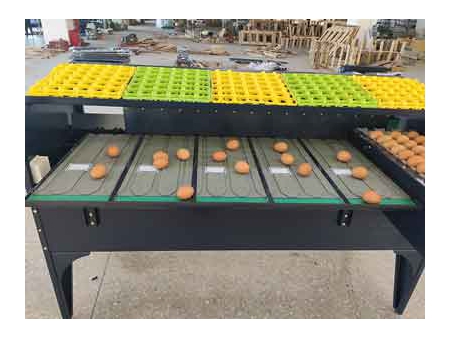

Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
