Colored cdte Thin Film Solar Panel LYF-T1 Manufacturer

Colored cdte Thin Film Solar Panel LYF-T1

Request a Quote

View All: http://solarpvmodular.com/1-3-2-colored-cdte-thin-film-solar-panel-lyf-t1.html

Features

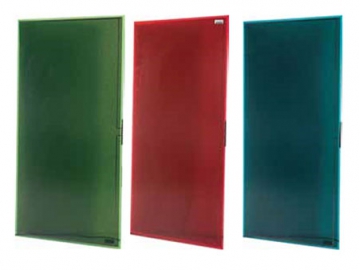

Colored thin film PV module
Double sided tempered glass
Size: 1200*600*6.8mm
Module efficiency: 11.3%
More energy
Higher conversion efficiency
Lower temperature coefficient
Higher reliability
Efficient power generation even under low sunlight conditions
High stability
30-year performance warranty
10-year quality warranty

Description

Our thin film solar panels feature an exceptional efficiency and stability. The temperature coefficient of the cadmium telluride thin film module is low, ensuring the solar panel operates reliably, even under high temperatures. The efficiency under low sunlight conditions is also better than that of a crystalline silicon solar cell. This thin-film module has no intrinsic light induced attenuation effects and will generate electricity with an exceptional stability. The chances of hot spot effects are exceptionally low, thus preventing overheating. The design highlights a color balance, making it suitable for buildings with strict aesthetic requirements.

Technical Parameters

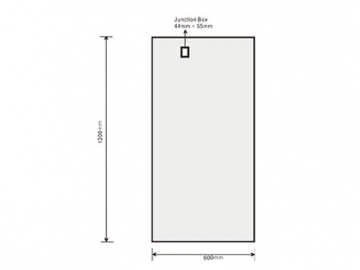

Mechanical Parameters
Length	1200mm
Width	600mm
Weight	12.3kg
Thickness	6.8mm
Area	0.72m2
Individual leadwire	1.5mm2
Connectors	MC4/MC4 equivalent
Junction Box	IP68
Cell type	Thin film
Front glass	Extra clear tempered glass, 3.2mm
Back glass	Tempered glass 3.2mm
Encapsulation	PVB
Load rating	Static: 5400Pa Wind: 2400Pa

Module numbers and ratings at standard test conditions(1000W/m2, AM 1.5, 25°C)

Nominal values		54	72	81
Nominal power (-0/ 5W)	PMPP (W)	54	72	81
Voltage at Pmax	VMPP (V)	96.1	96.1	96.1
Current at Pmax	IMPP (A)	0.56	0.75	0.85
Open circuit voltage	VOC (V)	122.1	122.1	122.1
Short circuit current	ISC (A)	0.64	0.85	0.96
Module efficiency	%	7.5	10.0	11.3
Operation temperature	℃	-40~ 85	-40~ 85	-40~ 85
Maximum system voltage	VSYS (V)	1000	1000	1000
Maximum series fuse	ICF (A)	2A	2A	2A
