Tunnel Car Wash Equipment CC-692 (11-Brush)
Request a Quote

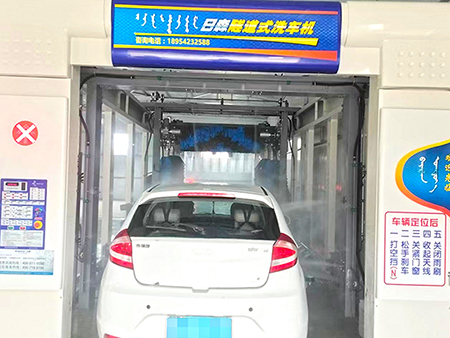

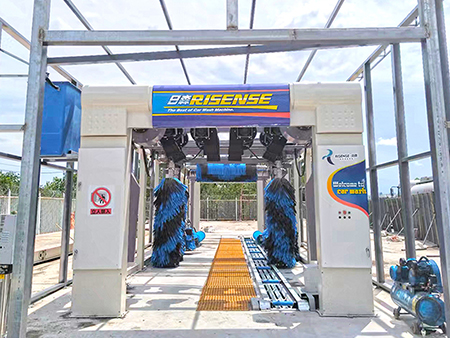

The car wash tunnel system features 11 car brushes (CC-692), and it is 11.6 m long to ensure it can clean the entire car, including the car wheel guide devices.
Parameters
| Tunnel car wash machine CC-692 | |
| Overall dimension | 13200*3800*3440mm |
| Installation size | 14310*4000*3440mm |
| Voltage | AC 380V50Hz (5-wire system) |
| Water-source requirement | Pipe diameter: DN25, water flow≥200L/min |
| Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car\jeep\coach within 10 seats |
| Moving range | 5300*2100*2100mm (wheelbase≤3200mm) |
| Car wash capacity | 45-55 sets/hour |
| Water consumption | 155L/car |
| Power consumption | 0.6kW/car |
| Shampoo consumption | 20-40ml/car |
| Wax consumption | 30ml/car |
| PLC | Mitsubishi from Japan |
| Optoelectronic monitoring | Banner from the USA |
| Brush rotating motor | SITI |
| Contactor | Schneider from France |
| Proximity Switch | PEPPERL FUCHS from Germany |
| Small brush cylinder | AirTAC |
| Wax suction pump | Bello Zon from Germany |
| Hot-dipped galvanized frame | 1 group |
| Shampoo spray system | 1 group |
| Wax spray system | 1 group |
| Contour-following drying system | 1 group |
| Car entry guide rail apparatus | 1 group |
| Chassis spraying system | Can be added |
| High pressure water spraying device | Can be added |
| Equipment data intellectualization | Management, spot check, operation |
| Self-diagnose system | Automatic fault display, self-checking |
| Short vertical brushes | 4 |
| Lifting top brush | 1 |
| Fixed long vertical brushes | 2 |
| Moving long vertical brushes | 2 |
| Horizontal tire brushing system | 2 |
Advantages
- The galvanized frame of the tunnel car wash system is both solid and durable
- A high pressure wash system improves the washing performance.
- The foam and water wax proportioning system is easy to use.
- 4 groups of powerful lift dryers.
- The liquid automatic siphon is easy to operate.
- Multiple cleaning and long term washing will completely rinse the car, ensuring a superior washing performance.
- A PLC fully-automatic computer control system ensures a higher security.
- The one-click washing method is easy to operate.
- A contour-following drying system creates a better drying performance.
Configurations
| Standard Devices | Optional Devices |
| Brush system | Undercarriage wash system |
| Hot dip galvanized frame | High-pressure water devices |
| Shampoo spray system | |
| Water wax spray system | |
| Contour-following drying system | |
| Car entry guide rail apparatus | |
| Equipment data intellectualization | |
| Self-diagnose system |
