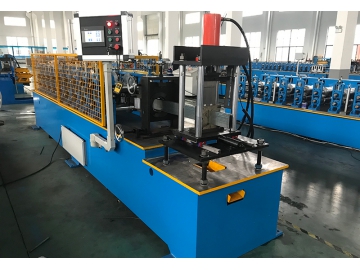

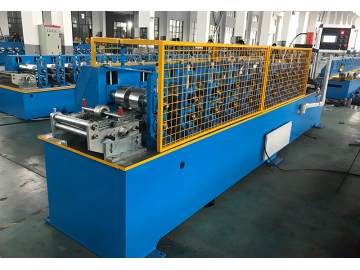

Guide Channel Roll Forming Machine
Request a Quote
Formation of U shaped vertical section for roller shutter door
This roll forming machine is typically used to produce vertical guide channels that enable the roller door curtain to slide up and down, and are widely used for industrial roller shutter doors such as wind resistant roller shutters and fire rated roller shutters. Our roll forming system can be configured with punching system to make mounting holes, thus achieving high-level automation and high efficiency production.
Components of Guide Channel Roll Forming Machine
- Uncoiler (2 tons)
- Roll forming machine
- Hydraulic die cutting machine
- Cooling system
- Runout table
Specifications
- Coil thickness: 1.5-2.0mm
- Coil width: 176mm (according to the profile type)
- Forming stations: 10
- Main motor power: 7.5kW, 380V, 50/60HZ, 3Phase
- Drive type: gear transmission system
- Working speed: 15m/min
- Uncoiler
- Feeding guide
- Roll forming
- Hydraulic die cutting
- Runout table
Huazhong is committed to the innovation of roll forming machines and helping customers lower their costs and stay ahead in their competitive market.
