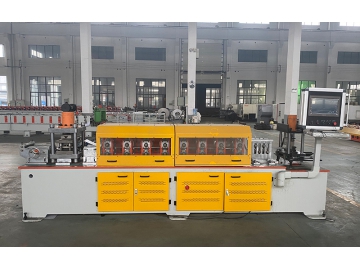

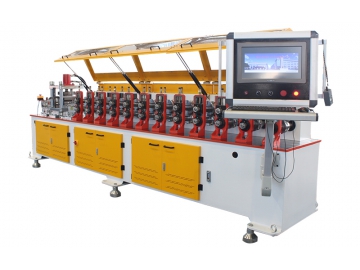

Rolling Shutter Slat Roll Forming Machine
Request a Quote
This roll forming machine is primarily designed for manufacuring steel shutter laths for wind resistant roller shutters, fire rated roller shutters or other industrial roller shutter doors. In addition to solid shutter laths, our roll former can also be configured with punching machine to produce perforated laths, featuring high-level of automation and high-efficiency production.

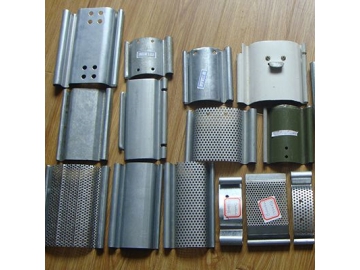

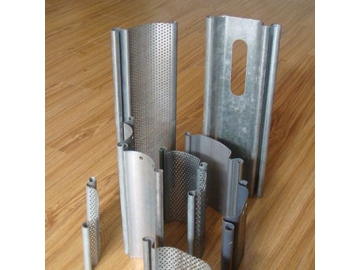

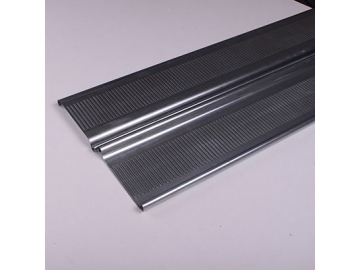

Samples of Finished Product
Components of Roller Shutter Door Roll Forming Machine
- Uncoiler (2 tons)
- Punching machine (25 tons)
- Roll forming machine
- Hydraulic die cutting machine
- Cooling system
- Runout table
Specifications
- Coil thickness: 0.8-1.0mm
- Coil width: 137mm (according to the profile type)
- Forming stations: 12
- Main motor power: 7.5kW, 380V, 50/60HZ, 3Phase
- Drive type: gear transmission system
- Working speed: 15-20m/min
- Working speed (with punching): 8-10m/min
- Uncoiler
- Punching
- Feeding guide
- Roll forming
- Hydraulic die cutting
- Runout table
Huazhong is committed to the innovation of roll forming machines and helping customers lower their costs and stay ahead in their competitive market.
