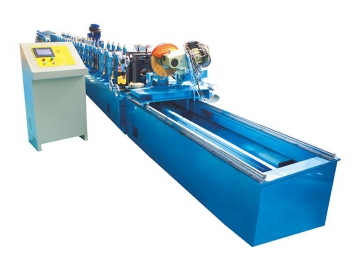

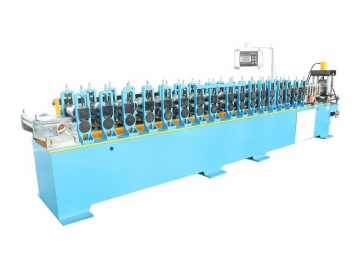

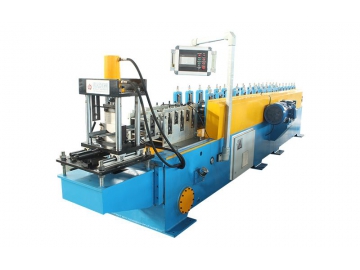

Roller Shutter Bottom Rail Roll Forming Machine
Request a Quote
This roll forming machine is typically used for the manufacture of roller door bottom rails, which are ideal for a variety of industrial roller doors such as wind resistant roller shutters and fire rated roller shutters. Our roll forming system can be configured with punching system to accomplish on-line lock hole punching, therefore achieving high-level automation and high efficiency production.

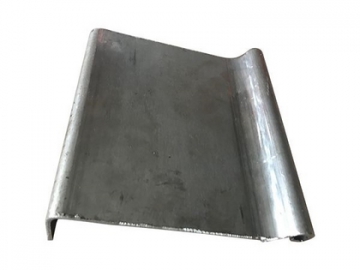

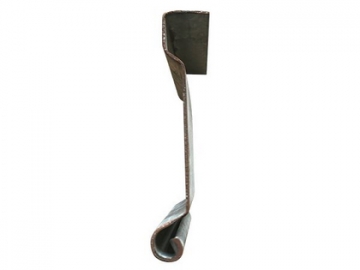

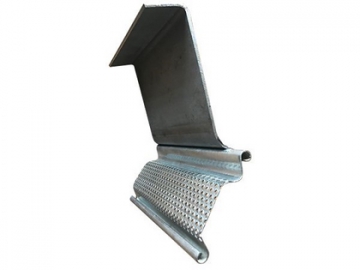

Samples of Finished Product

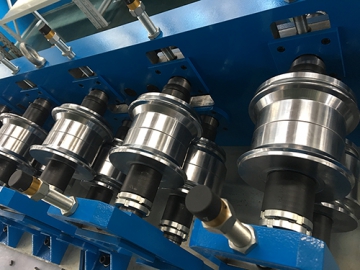

Components of Bottom Rail Roll Forming Machine
- Uncoiler (3 tons)

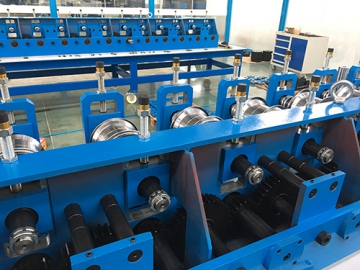

- Roll forming machine
- Fly saw cutting system with servo motor
- PLC automatic control system
- Cooling system
- Runout table
Specifications
- Applicable material: galvanized plate
- Coil thickness: 1.2-1.5mm
- Coil width: 164mm (according to the profile type)
- Drive: gearbox transmission system
- Forming stations: 18-25
- Main motor power: 11kW
- Forming speed: 10-15m/min
- Automatic uncoiler
- Feeding system
- Punching machine
- Roll forming machine
- Servo driven cutting system
- Runout table
Huazhong is committed to the innovation of roll forming machines and helping customers lower their costs and stay ahead in their competitive market.
