JM75 roller shutter door roll forming machine is developed for the production of slats for roller shutter door. The machine can roll form 0.8-1.2mm thick and 75mm wide materials.

Samples
Profile Drawing
Features
  • Easy operate, low maintain cost
  • Higher cost performance
  • High quality with faster working speed, max speed can reach 30m/min
Specifications
Model JM75
Dimension 5500*1000*1400mm
Motor Power 4kW
Hydraulic Power 1.5kW
Forming Speed 8-12m/min
Voltage 380V/50HZ/3PH
Forming Steps 14 3 steps for reshaping
Material Thickness 0.8-1.2mm
Effective Width 75mm
Roller Material Gcr15 steel plate hard chrome on the surface
Cutter Material Cr12Mov with heat treatment
Control System PLC Control
Details
  • Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.

  • Roller is made by high quality Gcr15 mold steel with CNC lathes.
    Plate hard chrome coating is optional for long service life.
    Body frame is welded with use 400# H bean.

  • PLC control system can be chosen from Schneider, Siemens, and Delta.

Main Accessories
  • Main machine
  • 3 tons manual uncoiler
  • Hydraulic forming cutter
  • Hydraulic system
  • PLC computer controlling system with touch Screen (Brand: Schneider)
  • Tools
  • Operation manual

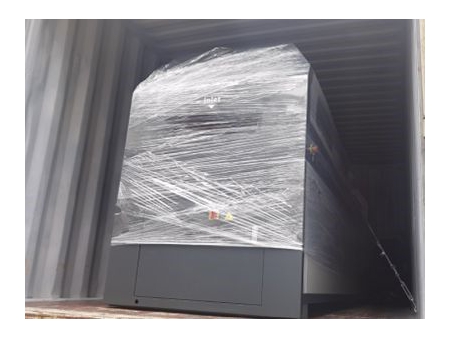

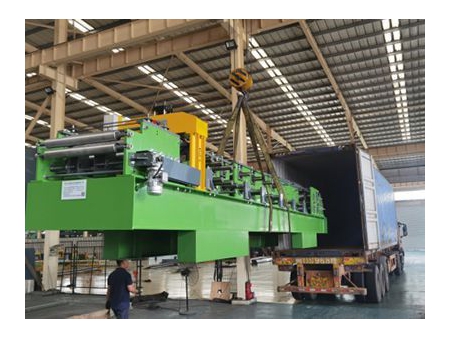

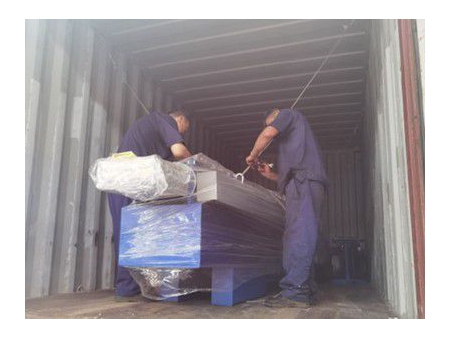

Transportation Package
