Automatic Block Ice Machine, ABI Series

Request a Quote

View All: http://icemaking-machines.com/1-3-automatic-block-ice-machine-abi-series.html

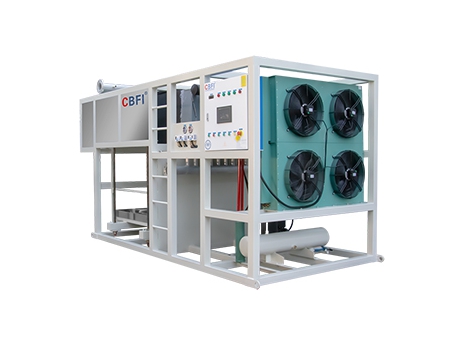

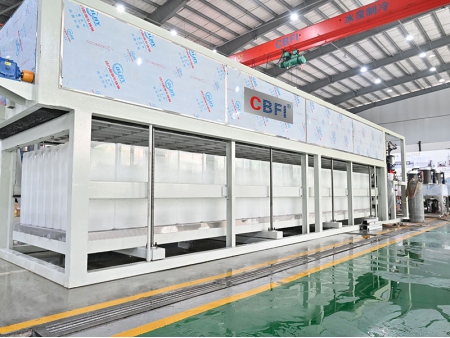

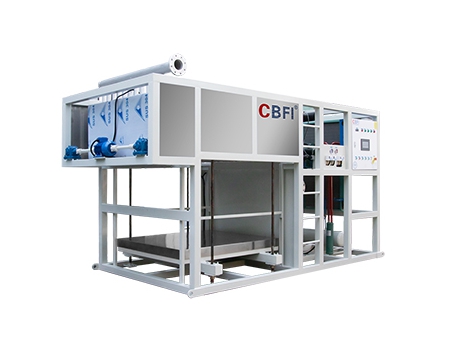

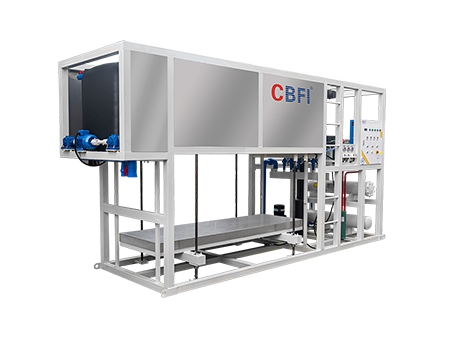

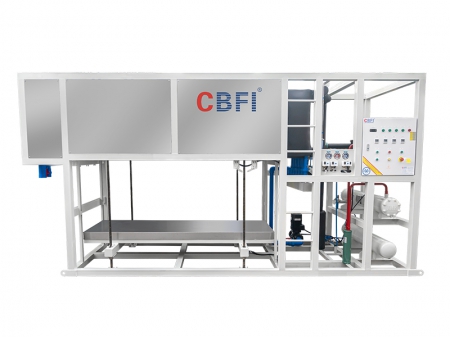

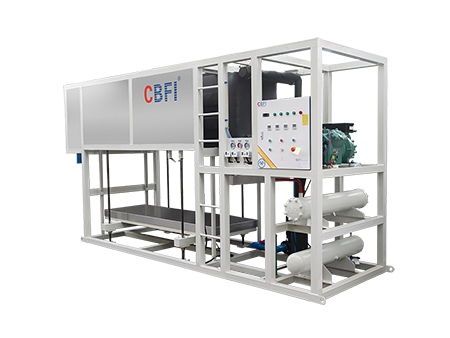

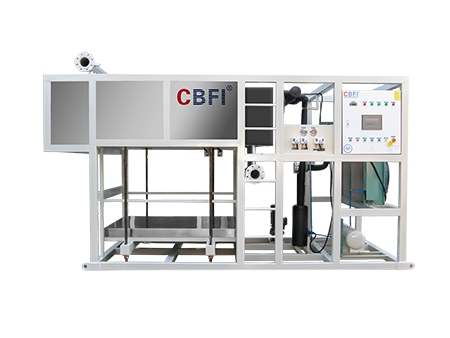

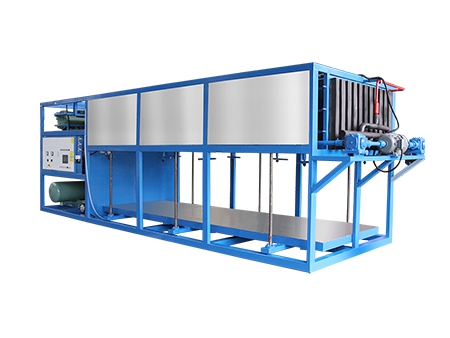

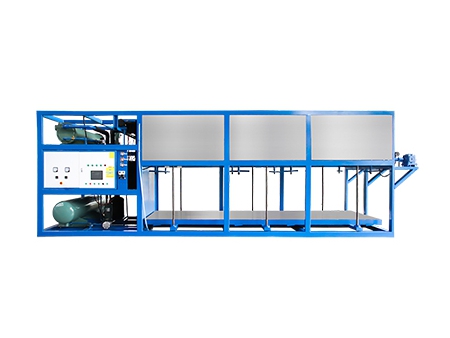

Our automatic block ice machine is a type of direct cooling block ice machines (also called direct evaporation block ice machines). By adopting aluminum evaporator that features efficient thermal conductivity, this block ice machine with direct evaporation system works based on the principle of direct heat exchange with refrigerant, therefore fast ice formation is achieved and the block ice has slow melt rate.

The block ice machine is capable of accomplishing automatically adding water into ice molds, automatic ice making and automatic ice harvesting, eliminating the need for manual operation. This direct cooling block ice machine can make ice block directly without via brine water, the ice molds can be used for a long time without change. Ice blocks produced by this machine are safe and sanitary, which completely conform to food standards. Modular design of the ice machine provides easy operation, small footprint and simple installation, all users have to do is supply the water and electricity.

Details

Features

2. High heat exchange efficiency, safe and environmentally friendly
2. Automatically adding water into ice molds, automatic ice harvesting
2. Ice blocks are safe and sanitary, conform to food standards

Compressor Brand: Bitzer / Hanbell; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating)：-18℃.
(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.)

ABI10 Automatic Block Ice Machine, ABI Series

Production (T/24h): 1
Compressor Power (kW): 3.88
Lifting Motor (kW): 1.1
Ice Weight (KG): 5/ 10
Ice Dimension (L*W*H): 110*90*550/ 225*90*550 mm
Machine Dimension (L*W*H): 4100*1280*1700 mm

ABI20 Automatic Block Ice Machine, ABI Series

Production (T/24h): 2
Compressor Power (kW): 7.04
Lifting Motor (kW): 1.1
Ice Weight (KG): 5/ 10
Ice Dimension (L*W*H): 110*90*550/ 225*90*550 mm
Machine Dimension (L*W*H): 3000*1100*1700 mm

ABI30 Automatic Block Ice Machine, ABI Series

Production (T/24h): 3
Compressor Power (kW): 9.44
Lifting Motor (kW): 1.1
Ice Weight (KG): 10/ 15
Ice Dimension (L*W*H): 225*90*550/ 245*120*560 mm
Machine Dimension (L*W*H): 4600*1380*1900/ 4860*1700*1900 mm

ABI50 Automatic Block Ice Machine, ABI Series

Production (T/24h): 4
Compressor Power (kW): 18.9
Lifting Motor (kW): 1.5
Ice Weight (KG): 20/ 25
Ice Dimension (L*W*H): 225*90*550/ 315*120*760 mm
Machine Dimension (L*W*H): 4800*1860*1900/ 5200*2140*2250 mm

ABI80 Automatic Block Ice Machine, ABI Series

Production (T/24h): 8
Compressor Power (kW): 28.4
Lifting Motor (kW): 3
Ice Weight (KG): 25/ 30
Ice Dimension (L*W*H): 315*120*760/ 305*145*760 mm
Machine Dimension (L*W*H): 7100*2140*2300/ 8580*2200*2300mm

ABI100 Automatic Block Ice Machine, ABI Series

Production (T/24h): 10
Compressor Power (kW): 39.1
Lifting Motor (kW): 4
Ice Weight (KG): 25/ 30
Ice Dimension (L*W*H): 315*120*760/ 305*145*760 mm
Machine Dimension (L*W*H): 8100*2140*2300/ 10200*2200*2300 mm

ABI150 Automatic Block Ice Machine, ABI Series

Production (T/24h): 15
Compressor Power (kW): 51.1
Lifting Motor (kW): 5.5
Ice Weight (KG): 30/ 40
Ice Dimension (L*W*H): 500*2000*2300 mm
Machine Dimension (L*W*H): 11200*2200*2500/ 10800*2200*2500 mm

ABI200 Automatic Block Ice Machine, ABI Series

Production (T/24h): 20
Compressor Power (kW): 39.1
Lifting Motor (kW): 7.5
Ice Weight (KG): 40/ 50
Ice Dimension (L*W*H): 315*120*760/ 305*145*760 mm
Machine Dimension (L*W*H): 11500*2300*2500 mm (all-in-one)/ 2800*2000*2300 (Compressor Unit), 7800*2240*2500*2 mm (Evaporator)

ABI300 Automatic Block Ice Machine, ABI Series

Production (T/24h): 30
Compressor Power (kW): 39.1
Lifting Motor (kW): 5.5*2
Ice Weight (KG): 40/ 50
Ice Dimension (L*W*H): 435*150*850/ 435*150*850 mm
Machine Dimension (L*W*H)
Compressor Unit: 3200*2000*2500 mm
Evaporator: 11000*2240*2500*2/ 14000*2900*2650 mm

Direct Cooling Block Ice Machine Parameters
No.	Cooling Capacity (kW)	Power (kW)	Lift Motor (kW)	Weight of Ice (kg)	Ice Size	Machine Size
					LWH (mm)	LWH (mm)
ABI 10	12.02	4.22	2.2	5	120100500	260011002000
				10	240100500	260011002000
ABI 20	22.9	7.7	3	5	120100500	270015102000
				10	240100500	270015102000
ABI 30	30.9	10.33	4	10	240100500	310016502000
				15	280120500	340017252000
ABI 50	61.8	20.5	5.5	20	260120730	435023102250
				25	320120730	450021652250
No.	Cooling Capacity (kW)	Power (kW)	Lift Motor (kW)	Weight of ice (kg)	Ice Size	Machine Size
					LWH (mm)	Compressor Unit LWH (mm)	Evaporator LWH (mm)
ABI 100	95.8	32.22	7.5	25	320120730	645026002250 (one-piece)
			11	30	310150730	240017002000	490021102250
ABI 150	142.4	47.8	11	30	310150730	295020002250	555024602250
				40	410150730	295020002250	555024602250
ABI 200	185.4	61.5	15	40	410150730	302522002250	680024602600
				50	350180950	302522002250	380025602600
ABI 300	249.9	85.5	22.5	40	410150730	332522002500	680024602250*3
				50	350180950	332522002500	680024602250*3
1. Operation condition: Ambient temperature 32℃, water supply temperature 20℃. The product technology is constantly being updated, and any changes in conditions will be reflected in the quoted price. The conditions listed here are for reference only - the actual situation may vary. 2. This machine does not require a cooling tower, as it is fitted with a water-cooled condenser, allowing for maximum power efficiency. The condenser specifications provide the necessary information to ensure this machine operates to its fullest potential. 3. Operation condition: water temperature 23°C, evaporation temperature -12°C, condensation temperature 40°C, and a reference valve under 50Hz power supply. Please note that variation in water and ambient temperature may affect the actual production of the machine.
