16kW-400kW Diesel Generator Sets Manufacturer

16kW-400kW Diesel Generator Sets

Request a Quote

View All: http://db-dieselgenerators.com/1-4-deutz-engine-series.html

Powered by Deutz diesel engines

We offer a range of diesel generator sets from 20kVA to 500kVA, supported by Deutz engines. These generator sets are celebrated for their reliable performance, exceptional quality, compact size, low fuel consumption, and strong environmental adaptability, offering ideal solutions for various applications including standby, primary, alternative, and mobile power supplies.

Key Specs

Power Range: 16-400kW

Fuel Type: Diesel

Frequency: 50 & 60HZ

Build Type: Silent Generator & Open Generator

Standards

The Deutz engine series diesel generator sets comply with international standards such as ISO9001, ISO14001, ISO45001, GB/T2820, ISO8525 & CE.

Our Deutz engine series diesel generator sets are available in a variety of power ratings

50Hz Selection Table

Genset Model	Diesel Generator Set				Deutz Engine Model	Size
	Prime Power		Standby Power			Dimension LxWxH( mm )	Weight ( kg )
	KW	KVA	KW	KVA		Dimension LxWxH( mm )	Weight ( kg )
DB-16GF	16	20	18	22	BFM3 G1	1730×750×1190	640
DB-24GF	24	30	26	33	BFM3 G2	1730×750×1190	730
DB-32GF	32	40	35	44	BFM3T	1730×750×1190	780
DB-40GF	40	50	44	55	BFM3C	2050×750×1650	800
DB-48GF	48	60	52	65	BF4M2012	2050×750×1650	900
DB-60GF	60	75	64	80	BF4M2012C G1	2050×750×1650	1000
DB-72GF	72	90	80	100	BF4M2012C G2	2350×850×1690	1250
DB-80GF	80	100	88	110	BF4M1013EC G1	2350×850×1690	1250
DB-90GF	90	112	100	125	BF4M1013EC G2	2350×850×1690	1300
DB-104GF	104	130	116	145	BF4M1013FC	2550×850×1800	1380
DB-128GF	128	160	140	175	BF6M1013EC G1	2550×850×1800	1500
DB-144GF	144	180	160	200	BF6M1013EC G2	2550×850×1800	1700
DB-150GF	150	188	168	210	BF6M1013FCG2	2720×1370×2130	1860
DB-160GF	160	200	176	220	BF6M1013FCG3	2720×1370×2130	1900
DB-200GF	200	250	220	275	TCD8.0	2720×1370×2130	2350
DB-240GF	240	300	264	330	TCD8.7	2720×1370×2130	2400
DB-260GF	260	325	280	350	TCD12.1G1	3000×1690×1950	2480
DB-300GF	300	375	320	400	TCD12.1G2	3200×1690×1950	2900
DB-360GF	360	450	400	500	TCD13.0G1	3350×1690×2130	3700
DB-400GF	400	500	440	550	TCD13.0G2	3350×1690×2130	3700

60Hz Selection Table

Genset Model	Diesel Generator Set				Deutz Engine Model	Size
	Prime Power		Standby Power			Dimension LxWxH( mm )	Weight ( kg )
	KW	KVA	KW	KVA		Dimension LxWxH( mm )	Weight ( kg )
DB-20GF	20	25	22	28	BFM3 G1	1730×750×1190	640
DB-28GF	28	35	30	38	BFM3 G2	1730×750×1190	730
DB-38GF	38	47.5	42	53	BFM3T	1730×750×1190	780
DB-48GF	48	60	52	65	BFM3C	2050×750×1650	800
DB-56GF	56	70	60	75	BF4M2012	2050×750×1650	900
DB-66GF	66	82	72	90	BF4M2012C G1	2050×750×1650	1000
DB-80GF	80	100	88	110	BF4M2012C G2	2350×850×1690	1250
DB-90GF	90	112	96	120	BF4M1013EC G1	2350×850×1690	1250
DB-100GF	100	125	112	140	BF4M1013EC G2	2350×850×1690	1300
DB-110GF	110	137.5	120	150	BF4M1013FC	2550×850×1800	1380
DB-134GF	134	168	144	180	BF6M1013EC G1	2550×850×1800	1500
DB-160GF	160	200	172	215	BF6M1013EC G2	2550×850×1800	1700
DB-168GF	168	210	184	230	BF6M1013FCG2	2720×1370×2130	1860
DB-176GF	176	220	196	245	BF6M1013FCG3	2720×1370×2130	1900
DB-212GF	212	265	228	285	TCD8.0	2720×1370×2130	2350
DB-256GF	256	320	280	350	TCD8.7	2720×1370×2130	2400
DB-300GF	300	375	330	413	TCD12.1G1	3000×1690×1950	2480
DB-320GF	320	400	350	438	TCD12.1G2	3200×1690×1950	2900
DB-374GF	374	468	400	500	TCD13.0G1	3350×1690×2130	3700
DB-400GF	400	500	444	555	TCD13.0G2	3350×1690×2130	3700

For more details, please contact us!

Details

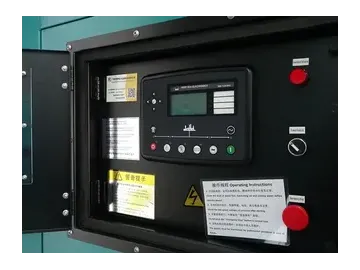

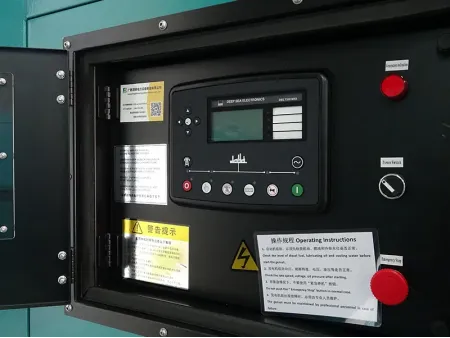

Intelligent Protection and Control System
Our generator sets are equipped with the well-regarded SmartGen/Deep Sea control system, which provides comprehensive protection mechanisms against short-circuits, under-voltage, incorrect phase sequence, and overloads. They feature a versatile LCD display that facilitates manual control, enables parallel operation, and offers a choice between automatic, stop, or manual settings. Furthermore, these sets include adjustable start and stop delays for enhanced operational flexibility and an emergency stop button for increased safety.

Single-cylinder Pump
The engine features a robust single-cylinder pump that has been proven in the European market for over a decade. Engineered using German technology, this pump is celebrated for its stable performance and low maintenance costs. Highly appreciated for its efficiency, including low fuel consumption, minimal noise production, and powerful output, it is ideal for those seeking high-performance and reliable operation.

Fuel System
Our fuel system is designed for optimal efficiency, achieving low fuel consumption at full load that ranks among the best in the world. It is versatile, compatible with various types of fuel. The integrated multi-functional design significantly simplifies the sets by reducing the number of parts, while its modular structure allows for easy adaptation to diverse application requirements.

Air Intake System
Equipped with an original Deutz air filter, our air intake system includes features for air intake and return. This design is specifically optimized for operation in high altitude and plateau environments, ensuring consistent performance under challenging conditions.

Noise Control
The diesel engines are remarkably quiet, eliminating the need for any auxiliary noise reduction equipment to meet standards. They offer a significantly lower noise level compared to other brands, enhancing user comfort and compliance with environmental noise regulations.

Features

Advanced intelligent design for reliable performance.

Compliance with Euro II or III emissions standards.

Adaptability to high altitude and plateau areas.

Compact structure, lightweight design, and stable performance.

Nationwide 24-hour after-sales service and spare parts supply.
