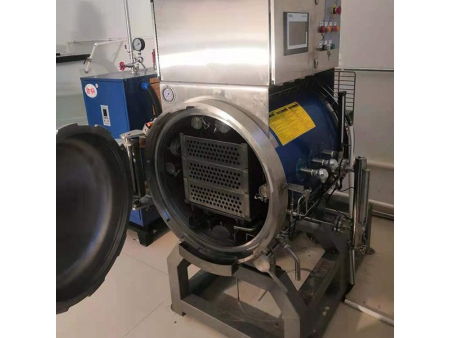

Pilot Retort
Pilot retort is a small multifunctional autoclave used in the packaging and food industry for research and development purposes. The pilot sterilizer is an ideal option for users who need for pilot study, lab experiment and small-batch food production. It is able to process different types of packaging with multiple sterilization options, including water immersion sterilization, water spray sterilization, steam-air mixture sterilization, rotary sterilization and oscillating sterilization.
Pilot retort is suitable for sterilizing PE bottles, tinplate cans, flexible pouches, vacuum pouches, etc.
| Model | Dimension (mm) | Retort wall thickness (mm) | Max. working pressure (MPa) | Max. working temperature (°C) | Approx. retort weight (kg) | Approx. operating weight (kg) | Capacity (m3) | Power (kW) | Voltage (V) | ||
| L | W | H | |||||||||
PLJ0607 | 1950 | 1050 | 1700 | 4 | 0.3 | 130 | 550 | 800 | 0.27 | 1.1 | 380 |
- Multiple sterilization processes are available, suitable for all types of packaging;
- Small capacity, less energy consumption;
- Adjustable sterilization via linear control, can store more than 100 types of product recipes;
- Able to real-time measure and determine F0 value at various positions of product through heat penetration test;
This lab retort system is designed for sterilizing new food items or packaging, simulating real production environments. This sterilization equipment features various advantages:
- Multiple sterilization processes available such as water immersion, water spray, steam-air mixture, rotary, and oscillating sterilization.
- Flexible sterilization processes allow sterilization of diverse packages like PE bottles, tinplate cans, flexible pouches, vacuum pouches, and more.
- Compact design with low energy consumption.
