50kW-1000kW Diesel Generator Sets

Request a Quote

View All: http://db-dieselgenerators.com/1-5-sdec-engine-series.html

Powered by SDEC diesel engines

We offer a comprehensive range of SDEC engine series diesel generator sets, available in capacities from 30kVA to 2250kVA. These gensets are designed for high voltage regulation accuracy and feature superior dynamic performance with minimal voltage waveform distortion. Noted for their high efficiency and reliable operation, our generator sets ensure a long service life and excellent fuel economy. Equipped with a maintenance-free battery start system, these generators are user-friendly—simply add oil and coolant, and activate with a switch to start.

Key Specs

Power Range: 50-1000kW

Fuel Type: Diesel

Frequency: 50 & 60HZ

Build Type: Silent Generator & Open Generator

Standards

The SDEC engine series diesel generator sets comply with standards such as ISO9001, ISO14001, ISO45001, GB/T2820, ISO8525 & CE.

Our SDEC engine series diesel generator sets are available in a variety of power capacities

50Hz Selection Table

Genset Model	Diesel Generator Set				SDEC Engine Model	Engine Power
	Prime Power		Standby Power			Prime	Standby
	kW	kVA	kW	kVA		kW	kW
DB-24GF	24	30	26	32.5	4Z2.7-G12	26	29
DB-24GF	24	30	26	32.5	4Z3.0-G11	27	30
DB-25GF	25	31	27.5	34.5	4Z3.2-G12	32	35
DB-32GF	32	40	35	44	4ZT3.2-G11	39	44
DB-32GF	32	40	35	44	4ZT3.5-G21	49	54
DB-50GF	50	62.5	55	69	4ZT4.1-G21	60	66
DB-55GF	55	69	60	75	4ZTAA4.1-G21	64	70
DB-60GF	60	75	66	82.5	4ZTAA4.1-G31	74	81
DB-50GF	50	62.5	55	69	SC4H95D2	62	68
DB-68GF	68	85	75	94	SC4H115D2	78	86
DB-86GF	86	108	95	119	SC4H140D2	95	105
DB-90GF	90	113	100	125	SC4H160D2	105	116
DB-100GF	100	125	110	137.5	SC4H180D2	120	132
DB-120GF	120	150	132	165	SC4H205D2	138	152
DB-130GF	130	162.5	143	179	SC7H220D2	150	165
DB-136GF	136	170	150	188	SC7H230D2	154	170
DB-150GF	150	187.5	165	206	SC7H250D2	168	185
DB-165GF	165	206	182	228	SC8D280D2	185	204
DB-180GF	180	225	200	250	SC9D310D2	208	228
DB-200GF	200	250	220	275	SC9D340D2	228	255
DB-220GF	220	275	240	300	SC10E380D2	255	280
DB-250GF	250	312.5	275	344	SC12E420D2	280	308
DB-250GF	250	312.5	275	344	SC13G420D2	280	308
DB-280GF	280	350	308	385	SC12E460D2	307	338
DB-300GF	300	375	330	413	SC15G500D2	330	373
DB-335GF	335	418	369	461	SC15G550D2	368	405
DB-360GF	360	450	400	500	SC25G610D2	405	445
DB-400GF	400	500	450	563	SC25G690D2	459	505
DB-450GF	450	562.5	500	625	SC27G755D2	505	560
DB-500GF	500	625	550	688	SC27G830D2	561	610
DB-550GF	550	687.5	600	750	SC27G900D2	602	662
DB-600GF	600	750	660	825	SC33W990D2	660	726
DB-600GF	600	750	660	825	6KTAA25-G32	685	754
DB-650GF	650	813	720	900	6KTAA25-G31	728	800
DB-700GF	700	875	770	963	SC33W1150D2	782	860
DB-720GF	720	900	800	1000	6WTAA35-G32	818	900
DB-800GF	800	1000	880	1100	6WTAA35-G31	882	970
DB-900GF	900	1125	990	1238	6WTAA35-G310	1018	1118
DB-1000GF	1000	1250	1100	1375	6WTAA35-G311	1118	1230
DB-1100GF	1100	1375	1210	1513	12KTA58-G36	1280	1410
DB-1200GF	1200	1500	1320	1650	12KTA58-G35	1420	1560
DB-1350GF	1350	1688	1485	1856	12KTA58-G34	1560	1720
DB-1500GF	1500	1875	1650	2063	12KTA58-G33	1720	1890
DB-1600GF	1600	2000	1760	2200	12KTA58-G32	1850	2035
DB-1800GF	1800	2250	1980	2475	12KTA58-G31	2010	2210

60Hz Selection Table

Genset Model	Diesel Generator Set				SDEC Engine Model	Engine Power
	Prime Power		Standby Power			Prime	Standby
	kW	kVA	kW	kVA		kW	kW
DB-15GF	15.5	19.5	17	21	4Z2.3-G12	21	23
DB-15GF	15.5	19.5	17	21	4Z2.3-G21	21	23
DB-20GF	20	25	22	27.5	4Z2.7-G12	26	29
DB-20GF	20	25	22	27.5	4Z2.7-G21	26	29
DB-24GF	24	30	26.4	33	4Z3.0-G12	30	33
DB-24GF	24	30	26.4	33	4Z3.0-G21	30	33
DB-32GF	32	40	35	43.5	4Z3.2-G12	38	42
DB-32GF	32	40	35	43.5	4Z3.2-G21	38	42
DB-35GF	35	44	38.5	48	4ZT3.2-G12	42	46
DB-35GF	35	44	38.5	48	4ZT3.2-G21	42	46
DB-50GF	50	62.5	55	69	4ZT3.5-G21	60	66
DB-60GF	60	75	66	82.5	4ZT4.1-G21	70	77
DB-64GF	64	80	70	87.5	4ZTAA4.1-G21	76	83
DB-65GF	65	81	71.5	89	4ZTAA4.1-G31	80	88

For more details, please contact us!

Details

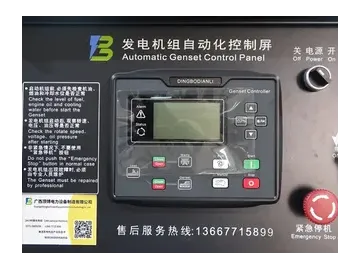

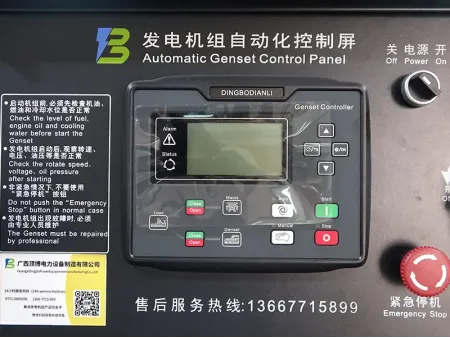

Intelligent Protection and Control System
The generator sets feature SmartGen/Deep Sea control system, with multi-functional LCD module replicating all functionalities and configurations of a manual control panel, including parallel operation capabilities, and automatic/stop/manual functions. It provides comprehensive protection with alarms and shutdown capabilities for conditions such as overspeed, high water temperature, low oil pressure, underfrequency, phase loss, overload, start failure, output voltage failure, charging failure, and more. An emergency stop button enhances safety measures.

Compact and Efficient Design
Major components like cylinder heads and flywheel housings are constructed from high-strength die-cast aluminum, ensuring the unit is not only ultra-lightweight but also fuel-efficient.

Durable and Resilient Structure
Features a high-strength bending chassis made from thickened steel plate, which is heavy yet remains undeformed, with excellent shock absorption qualities and corrosion-resistant paint.

Exceptional Cold Start and Altitude Performance
The generator set boasts superb cold start capabilities, operational at temperatures as low as -40 degrees Celsius. It meets the 5000-meter altitude standards of GJB-235B certification, with units below 55kW capable of operating at 3500 meters without power loss.

Ultra-Low Vibration and Noise Levels
Designed to perform quietly, this series meets passenger car-level vibration and noise standards, operating at full load without exceeding 86 decibels. Silent models further reduce noise levels to below 70 decibels, significantly cutting down on the need for additional noise reduction measures.

Features

Offers high power with efficient load handling, minimal vibration, and reduced noise levels.
Features low emissions, exceptional fuel efficiency, and superior energy conservation, meeting current environmental protection standards.
Integrates an integral crankshaft, gantry frame, flat-cut connecting rod, and compact piston design for a sleek structure.
Utilizes a newly designed tapered combustion chamber to enhance fuel injection pressure, optimizing the combustion process and meeting environmental compliance.
The lubrication and cooling systems are designed to minimize the need for external piping and components, enhancing system efficiency and reliability.

Cases

800kW SDEC engine series diesel generator sets exported to the Middle East
160kW and 800kW SDEC engine series diesel generator sets exported to UAE
