Solid Carbide End Mills for Hardened Steel Machining, H Series
Request a Quote
Machining of High-hardness Workpieces
Suitable for semi-finishing and fine finishing of pre-hardened steel, hardened steel and high speed steel with hardness range of 40-65HRC;
Wide Range of Applications
Suitable for general machining, high-speed machining and high-efficiency partial machining of injection molds, forging dies, die-casting molds, etc.;
Superior Substrates and Coatings
- Ultra-fine grained carbide substrates with excellent hardness;
- Self-developed TiAlSICrN coatings are applied along with Balzers latest KiLA furnace, providing high stability, good resistance to heat and wear;
Unique Cutting Edge Geometry
Optimal geometry along with finely ground surface finish, offering excellent machining performance for hardened steel;
Explore Our Catalogue of H Series Solid Carbide End Mills
| Item Code | Category | End Shape | Length Type | Number of Flutes | Flute Diameter | |

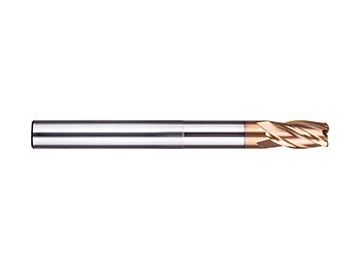

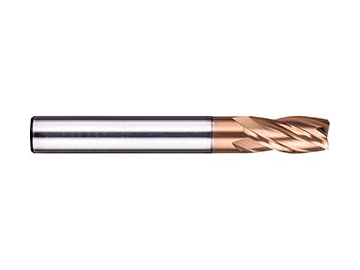

| Hardened Steel Machining End Mill | Square End | Regular | 4 | Ø1- Ø20 | |

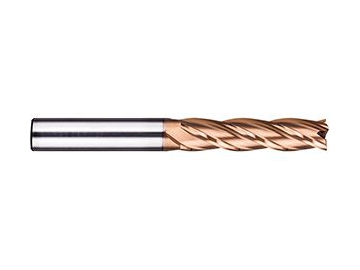

| Hardened Steel Machining End Mill | Square End | Long Flute | 4 | Ø1- Ø16 | |

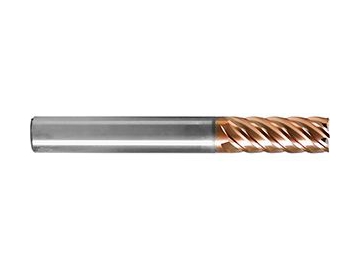

| Hardened Steel Machining End Mill | Square End | Regular | 6 | Ø1- Ø12 | |
| Hardened Steel Machining End Mill | Square End | Long Flute | 6 | Ø1- Ø12 | |

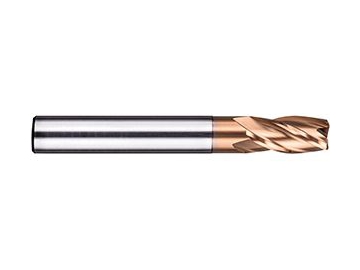

| Hardened Steel Machining End Mill | Corner Radius | Regular | 4 | Ø1- Ø12 | |
| Hardened Steel Machining End Mill | Corner Radius | Long Neck | 4 | Ø1- Ø12 | |

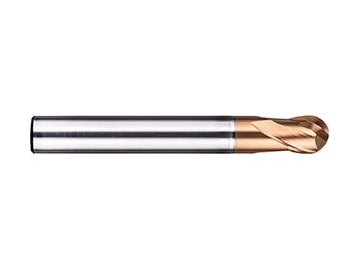

| Hardened Steel Machining End Mill | Ball Nose | Regular | 2 | Ø0.6- Ø16 | |

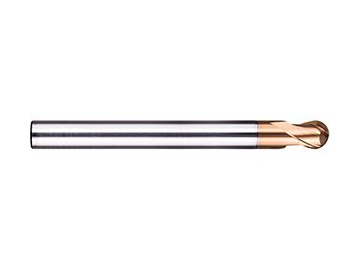

| Hardened Steel Machining End Mill | Ball Nose | Long Shank | 2 | Ø2- Ø12 |
