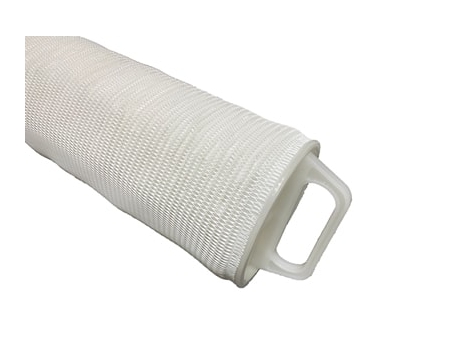

High Flow Filter Cartridge, PHFW Series

Request a Quote

View All: http://filtrationcartridge.com/1-6-high-flow-filter-cartridge.html

Our high flow filter cartridges feature a high-precision membrane with filtration precision of 1~100μm, boasting an impressive 98% interception rate for impurity particles. With lengths available in 20", 40", and 60", these cartridges are customizable to intercept various filtration impurities, making them highly suitable for industries like pharmaceuticals, chemicals, electronics, and petroleum.

Our high flow filter cartridges come with a reinforced polypropylene inner frame, capable of withstanding pressures up to 4.0bar, providing ideal filtration characteristics.

Materials of Construction

Model	Filter Medium	Support/Drainage	End Cap	O-ring
PP filter cartridge	Pleated polypropylene depth structure	Polypropylene	Glass fiber reinforced polypropylene	Nitrile rubber (NBR) Ethylene-propylene rubber (EPR) Fluoro rubber (FPM/FKM) Silicon
GF filter cartridge	Resin bonded glass fiber/polyester	Polyester	Glass fiber reinforced polypropylene

Specifications

Outside Diameter	6.5"(165mm)
Inside Diameter	86mm
Length	20"，40"，60"
Micron Rating	1~100μm
Max. Operating Temperature	Pleated/melt-blown polypropylene (PP): 82℃
Max. Operating Temperature	Pleated glass fiber (GF): 121℃
Max. differential pressure (inside to outside flow)	Pleated/melt-blown polypropylene (PP): 3.44bar@82℃
Max. differential pressure (inside to outside flow)	Pleated glass fiber (GF): 3.44bar@121℃
Change-out differential pressure	Recommended change-out differential pressure: 1.5Bar@20℃
Change-out differential pressure	Max. change-out differential pressure: 2.5Bar@20℃
Max. flow rate	40'' filter cartridge: 70m³/h
Max. flow rate	60" filter cartridge: 110m³/h

Applications

General Applications: Prefiltration for reverse osmosis systems, purification of various process water.
Industrial Use: Filtration for various process fluids, process water, condensate water, cooling water, wastewater treatment, and more.
RO protection, pretreatment for seawater desalination, and filtration of various process water.
Filtration for power plant condensate water, feedwater, and cooling water.
Filtration of various solvents, chilled water, saltwater, and other chemical agents in the petrochemical industry.
