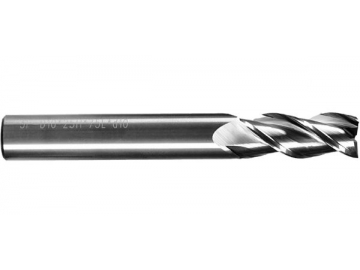

EA-R3 General Purpose End Mill for Aluminum Alloy Machining - Corner Radius - 3 Flutes
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Corner Radius (r) | Overall Length (L) | Shank Diameter (d) | Type |
EA-R3-02002 | 2 | 6 | 0.2 | 50 | 4 | A |
EA-R3-03002 | 3 | 9 | 0.2 | 50 | 4 | A |
EA-R3-04002 | 4 | 11 | 0.2 | 50 | 4 | B |
EA-R3-04005 | 4 | 11 | 0.5 | 50 | 4 | B |
EA-R3-05002 | 5 | 13 | 0.2 | 50 | 6 | A |
EA-R3-05005 | 5 | 13 | 0.5 | 50 | 6 | A |
EA-R3-06005 | 6 | 16 | 0.5 | 50 | 6 | B |
EA-R3-06010 | 6 | 16 | 1 | 50 | 6 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
