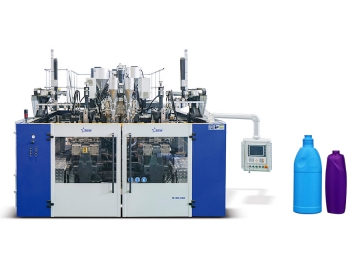

B10D Series Double-station Blow Molding Machine
Request a Quote
Our double-station blow molding machine is designed to cater to extensive plastic production requirements from our customers. With 6 die heads, this machine can be used for the production of a variety of plastic bottles with 2 to 3 layers, and a volume of 100mL to 1L, in both liquid and non-liquid measurements. With exquisite design and manufacturing, our blow molding machines provide an outstanding extrusion effect at cos-effective prices. This blow molding equipment is widely used in consumer packaging, food and beverage, industrial, medical and automotive industries.
Technical Specification
| Model | B10D-560 | B10D-480 |
| Clamping Force | 100kN | 100kN |
| Hydraulic System Power Consumption | 22kW | 22kW |
| Mold Platen Opening/Clamping Stroke | 500/220mm | 500/220mm |
| Carriage Stroke | 560mm | 480mm |
| Cycle Time | 2.8S | 2.5S |
| Mold Size | Max.width:550mm | Max.width:470mm |
| Max.height:400mm | Max.height:400mm | |
| Min.thickness:2x110mm | Min.thickness:2x110mm | |
| Max.weight:2x180kG | Max.weight:2x150kg | |
| Machine Voltage | 380V/50Hz | 380V/50Hz |
| Air Pressure | 6-10bar | 6-10bar |
| Air Volume | About 90m3/h | About 90m3/h |
| Dimension (L×W×H) | 5400x4100x3500mm | 5000x3200x3500mm |
| Machine Weight | About 12 Tons | About 9.6 Tons |
