Drum Sieve, Cleaning Machine

Drum sieves are used to remove the coarse impurities and other bulk materials from grain in order to protect downstream machines. Its durable and optimized design ensures an efficiency coarse cleaning process and excellent reception capabilities.

Features

Structure design

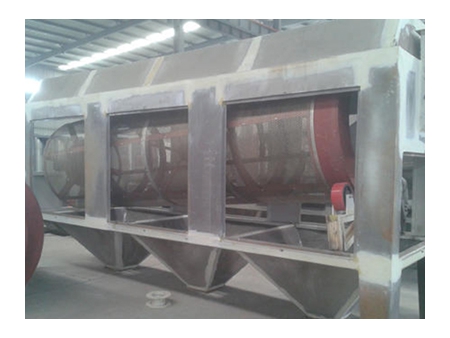

The drum sieve features a compact structure that takes up very little floor space. This machine is equipped with a screen drum and outside brush for an efficient coarse cleaning and blockage prevention. The screen is easy to clean and change.

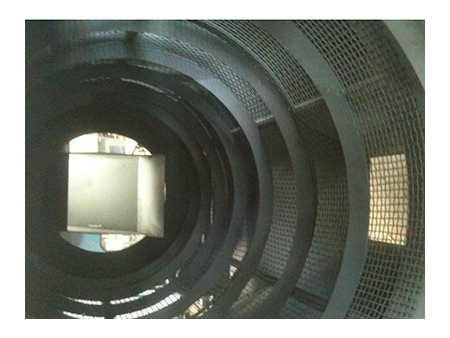

Screen drum design
The lengthened screen drum and the combination of various sieves ensure a coarse cleaning rate of more than 99%.
Double support structure
The screen drum features a double support structure for a smoother operation.
Wide range of applications
It is widely used in terminals, ports, reception areas and processing plants for pre-cleaning of rice, grain, and animal feed.

Specifications

Model	SLJ-TSCY100	SLJ-TSCY125	SYX-TCQY80
Capacity (T/H)	15-30	30-50	8-12
Motor	XWD3-23	XWD3-23	XWD3-23
Motor Power(kW)	1.1	1.5	1.1
Dedusting Connection (M³/Min)	10-12	10-14	8-12
Dimensions (LWH)(mm)	224011801920	268015202440	17329601650

Working Principle

The grain is fed through a curved inlet chute to the inside of a revolving perforated sheet metal drum. The grain falls through the perforations to the outlets, while coarse impurities are retained in the drum and sent to the foreign matter outlet with the drum’s rotary movement.

The drum sieve is equipped with a brush that automatically cleans the screen drum to prevent mesh blockage. The dedusting connection to the air suction device ensures dust and light impurities are efficiently removed.

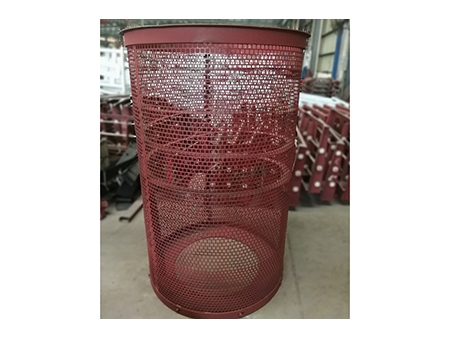

Core Components

The impurities it can remove include

Hemp rope
Straw
Soil
Grass
Stone

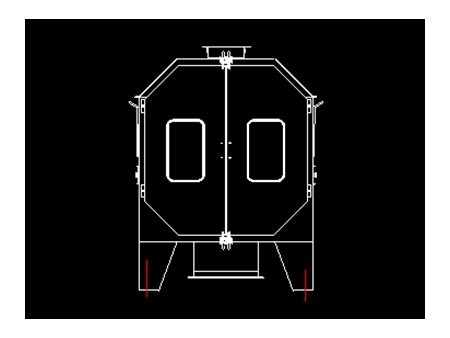

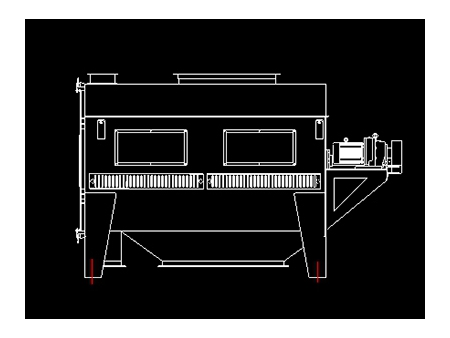

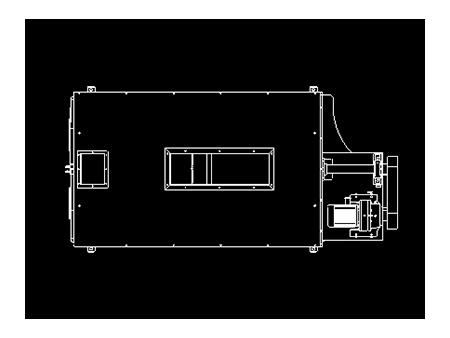

Structure Diagram
