Automatic Blister Packing Machine for Mask DPP-260S
Request a Quote

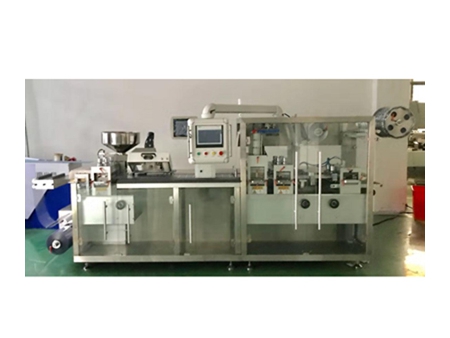

The DPP-260S automatic blister packing machine for masks features a worm wheel reducer, adjustable stroke, double orientation shaft, and touch screen control. It is an aluminum-plastic automatic blister packing machine for automatic and high-speed mask packing.
Parameters
| Model | DPP-260S | |||
| Packing Material | Cold form alu (mm) | (0.09-0.15)×260 | ||
| PTP alu foil (mm) | (0.02-0.05)×260 | |||
| Pharmacy PVC (mm) | (0.2-0.4)×260 | |||
| Capacity:Standard Card (80mm×57mm)×4Row ((Cycle/min)) | ALU/ALU:40 | ALU/PVC:60 | ||
| Range of stroke(mm) | 40-120 | |||
| Max.forming area(mm) | 250*120 | |||
| Max.forming depth(mm) | ALU/ALU:13 | ALU/PVC:18 | ||
| Power Supply | AC380v | 50Hz | 6.5kw | |
| Clean compressed air(pressure)(Mpa) | 06-0.8 | |||
| Air consumption(stere/ min) | ≥0.3 | |||
| Water chiller consumption for moulds(tap water or recycle water)（L/h） | 60 | |||
| Overall dimension(L×W×H)(mm) | 4200*750*1700 | |||
| Net weight (kg) | 2000 | |||
