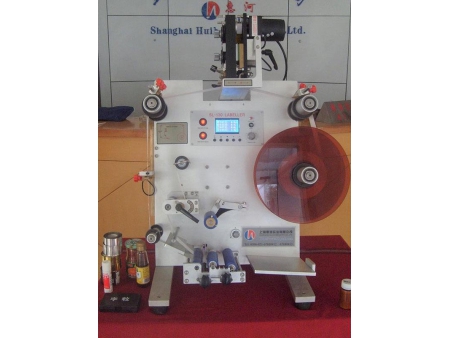

Semi-Automatic Bottle Labelling Machine

Semi-Automatic Bottle Labelling Machine
Semi-Automatic Bottle Labelling Machine
Semi-Automatic Bottle Labelling Machine
Request a Quote
Technical Parameters
Model SL-130
Voltage AC200V 50Hz
Power 150W
Label size Max.: 120(W)×400(L) mm min.: 10(W)×30(L)mm
Bottle diameter Max.:ф125mm min.:ф20mm
Label roll size Inner diameter:ф75mm outer diameter:ф300mm
Dimensions 580×680×860 mm(coding machine included)
Net weight 35kg 45kg(coding machine included)


Features
1. The imported electromagnetic clutch guarantees high precision.
2. A long lifespan is realized due to good-quality aluminum alloy anode.
3. By introducing motor from reliable company, the labelling equipment is capable to continuously run under heavy load.
4. All components are made from anti-oxidation aluminum alloy and stainless steel materials.
5. The PLC control panel has a liquid crystal display and clearly shows technic details.
6. Imported optocouplers ensure high precision.

Applications
The semi-automatic bottle labelling machine adopts an intelligent control system and an optimal design, featuring convenient operation and stable performance. The bottle and can labeling system is well suited for labeling various material bottles, like glass bottle, plastic bottle and metal bottle. The semi-auto bottle labeler provides accurate labeling and can also be installed with a coding machine to print date of manufacture, period of validity, lot number, etc.
