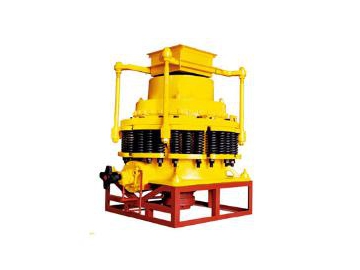

The CS cone crusher is particularly offered for ultra-hard material, including granite, basalt, quartzite, iron ore, and cobblestone. It is widely seen in mining industry, building material industry, metallurgical industry, gravel processing industry, and road and bridge construction industry.

Features
1. The cone crusher is reasonably designed for reliable overall performance, stable operation, and high cost effectiveness.
2. Apart from the optimal size reduction ratio, this range of cone crushing equipment is very popular because of the high productivity and good abrasion resistance.
3. Made of high-strength cast steel, the rack of the cone crusher is capable of providing precision processing technology.
4. Reliable sealing effectively extends the change interval of the lubricating oil and the lifespan of the accessories.
5. Simple and convenient, the crushing chamber cleaning is hydraulically controlled.
6. The hydraulic system is conducive to the easy, convenient and labor-saving operation of the cone crusher.
7. Adopting combined type crushing chamber, the stone crushing machinery offers high rate of finished product in cubic shape.
8. Supporting rough, medium and fine crushing, the stone crusher provides more choice to the users.

Technical Parameters of Cone Crusher
Model Dia. of Crushing Device Type of Crushing Chamber Inlet Size Adjustable Size of Outlet Handling Capacity Speed of Main Shaft Power Weight Overall Dimensions
Closed Open
B75 900(3') Slim 83 102 9-22 45-91 580 75 15 2821 x 1880 x 2164
Wide 159 175 13-38 59-163
B110 1200(4') Slim 127 131 9-31 63-188 485 110 20 2821 x 1974 x 2651
Medium 155 156 13-38 100-200
Wide 178 191 19-51 141-308
B160 1295(17/4') Slim 109 137 13-31 109-181 485 160 27 2800 x 2342 x 2668
Medium 188 210 16-38 132-253
Wide 215 241 19-51 172-349
B220 1676(11/2') Slim 188 209 16-38 181-327 485 220 55 3911 x 2870 x 3771
Medium 213 241 22-51 258-417
Wide 241 268 25-64 299-635
B315 2134(7') Slim 253 278 19-38 381-726 435 315 110 4613 x 3251 x 4732
Medium 303 334 25-51 608-998
Wide 334 369 31-64 789-1270
Model Dia. of Crushing Device Type of Crushing Chamber Inlet Size Adjustable Size of Outlet Handling Capacity Speed of Main Shaft Power Weight Overall Dimensions
Closed Open
D75 914(3') Slim 13 41 3-13 27-90 580 75 15 2821 x 1880 x 2410
Wide 33 60 3-16 27-100
D110 1218(4') Slim 29 57 5-16 50-132 485 110 20 2560 x 1942 x 2928
Medium 44 73 10-16 90-145
Wide 56 89 13-19 141-181
D160 1295(17/4') Slim 29 64 3-16 36-163 485 160 27 2800 x 2342 x 2668
Medium 54 89 6-16 82-163
Wide 70 105 10-25 109-227
D220 1676(11/2') Slim 35 70 5-13 90-209 485 220 55 3911 x 2870 x 3771
Medium 54 89 6-19 136-281
Wide 98 133 10-25 190-336
D315 2134(7') Slim 51 105 5-16 190-408 435 315 110 4130 x 3251 x 4454
Medium 95 133 10-19 354-508
Wide 127 178 13-25 454-599
