Servo Driven CNC Turret Punch Press Smart-SF-30
Request a Quote
View All: http://accurlcnc.com/19-7-servo-driven-cnc-turret-punch-press-smart-sf-30/297623/index.html
Features

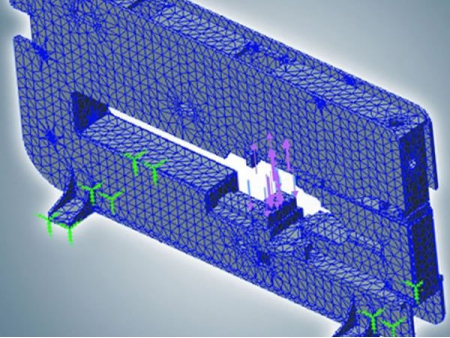

- Accurl Turret Punch, presses are produced as a closed type rigid steel constructionsin to a robust structure to allow minimum deflection during operation.
- Operating System is CNC and hydraulic.
- Accurl Turret Punch 4 axes controlling; X, Y axes for movement of sheet, T axes:Turret rotation, C axis: Auto-index station rotation for indexing tools.

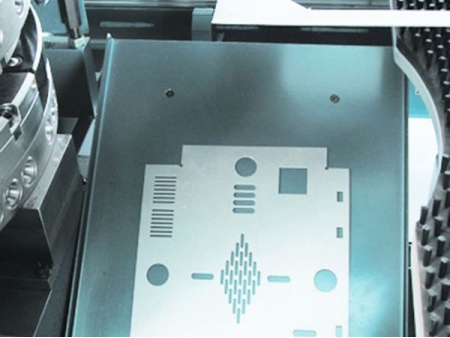

- The 32 station Turret as to allow punching complicated, multi anddifferent size holes parts in a single operation.
- Auto –index stations can punch to required angle for various angle shape parts with CNC controller.
- Precision forming and roller tools can be use on the Turret, therefore TP Turret punch provides
- Complete solutions with effective costs.
Design to Production
Metalix CNCCAD CAD/CAM software offersan integrated system cover to the user whichincludes the complete cycle of CNC operation.
New Drive Ram Mechanism
The ram drive of TP-MAX125 has incorporated CFRP in the part of toggle mechanism connected directly to the servomotor making it lighter in weight and more rigid. The new drive mechanism and the replacement of the alternating movement decreases vibration by 65%. In addition, a reduction of motor heat saves energy in cooling and the resuscitation of electric energy when braking.
Standard Equipments
- 4 Axes CNC System

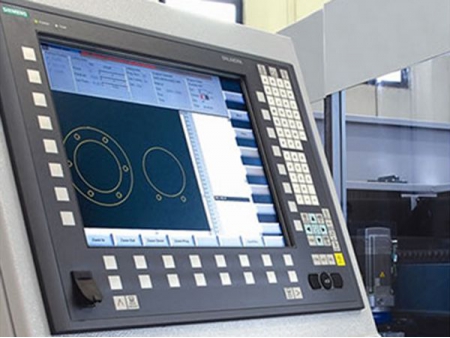

- ANUC PC CNC unit, servo motors and drivers
- Rexroth and HL hydraulic unit

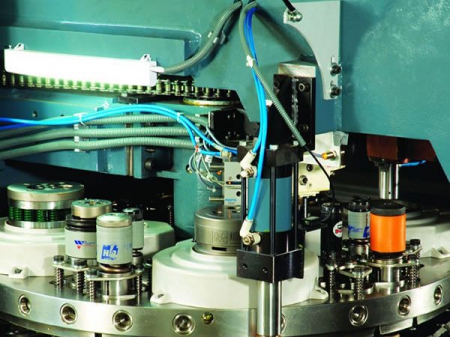

- 32 Stations Turret10 A Stations16 B Stations2 C Stations4 D Station (2 of them Auto Index)
- Repositioning of Clamps
- Automatic reference
- CAD/CAM program
- Automatic Clamping
Optional Equipments
- Tool Adaptors
- Extra D index station
- Thin &Thick Turret Tools
Specifications
| Item / Model | SPH-MAX1250 | SPH-MAX1250X | ||
| Nominal Force | kN | 200 | 300 | |
| Max. Sheet Thickness | mm | 6.35 | 6.35 | |
| Max. Tool Size | mm | Φ88.9 | Φ88.9 | |
| Max. Sheet Size(One-time repositioning) | mm | 1250×5000 | 1250×5000 | |
| Punching Accuracy | mm | ± 0.1 | ± 0.1 | |
| Driving System | Drive Type | Servo V.R. | Servo V.R. | |
| AC Motor Power | kW | 16 | 16 | |
| Max. Sheet Weight | kg | 150 | 150 | |
| Max. Marking Rate | h.p.m | 1800 | 1800 | |
| Max. Punching Rate (10mm stroke) | 1mm pitch | h.p.m | 1000 | 1000 |
| 25mm pitch | 500 | 500 | ||
| Max. Feed Rate | m/min | 110 | 110 | |
| Quantity of Rotary Station | 40(4)/50(2IT/2MT) | 32 (2) | ||
| Rotary Station | Exchangeable Tool Type | C/D/MT6A/E | - | |
| Quantity of Secondary Indexing Sub-tools | 12 | - | ||
| Quantity of Control Shaft | pcs | 6 1(X/Y1/Y2/T/C/C1/A) | 5(X, Y, T, C, A) | |
| Machine Weight | kg | 16000 | 16000 | |
| Overall Dimensions | mm | 4965×5200×2110 | 4965×5200×2110 | |
