30 Ton Hydraulic CNC Turret Punch Press Manufacturer

30 Ton Hydraulic CNC Turret Punch Press

Request a Quote

View All: http://accurlcnc.com/30-ton-hydraulic-cnc-turret-punch-press.html

High Performance

By offering the choice between our MAX-series machines and the T-series classical thick-turret style, Accurl proudly offers a full range of punching solutions for both performance and price range requirements.

Flexibility in Multi-Tools

ACCURL®MAX-SF Series CNC Punch Press Machine is a newly developed multi-index tool turret punch press that is equipped with an advanced servo hydraulic system. Accurl’s MAX SF Series CNC Punching machines provides the fastest, flexible and most reliable punch press to satisfy customer requirements for fast, precise sheet metal works.

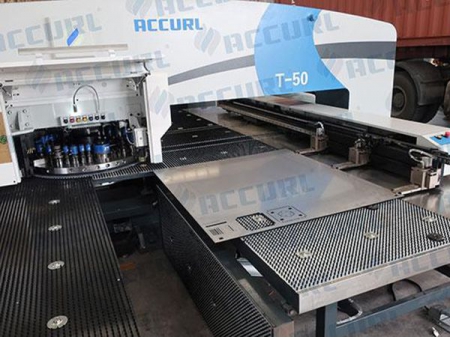

32 Stations 2 Auto index

ACCURL entry level turret offers a full set of tooling with two auto indexing stations.
The strictly engineered mechanical parts in the H L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke controls the speed and stroke of the 30 ton hydraulic punching head.
The T-series is equipped with a thick turret tool holder, consisting of 32 stations. It comes with standard with 2 Auto Index "D" stations. An additional two auto-indexing stations are optional.

Complex Multi-Tools Auto Index Technology

Synchronized dual servo motors for controlling the auto index functions.
2 D Auto Index Stations for Multi Tools, either 3 B or 8 A.
Capable of indexing each individual tool within the 3B and 8A Multi Tool set.
24 various size stations including 4 Auto Index stations Multi Tools. Therefore, a total of 24 to 52 tools can be employed.
Capable of running wheel, marking, grooving and forming Tooling.

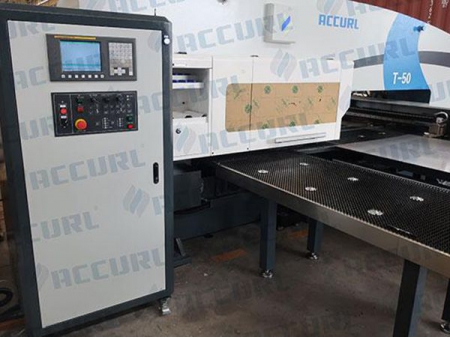

Siemens control

The MAX T-series comes standard with the Siemens 802D SL operator control, combining all components of a CNC (NC, PLC, HMI) and drive control in a single unit.

Standard Equipment

Siemens CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors

3 automatic repositioning clamps and loading switches.

Siemens 802DSL CNC Control System

Aluminum wor kholder

Tool lubricating system (Airblow).

Free standing control panel.

Control with foot pedal.

Tools stuck safety system

1 software (Lantek or RADAN software).

24 or 42 turret stations

Digital oil temperature indicator.

Software for using wheel and forming tools.

Sheet jumping switches

Scrap box.

Chain protection around the machine (safety system).

Specifications

Item	Unit	MAX-T 30T
Punching Capacity	Ton	30
X Traverse Length	mm	2490±10
Y Traverse Length	mm	1250±10
Max Sheet Size	mm	1250x4980
Max Sheet Thickness	mm	6.35
Max Mass of Material	kg	110
X Axis Traverse Speed	m/min	80
Y Axis Traverse Speed	m/min	70
Max Traverse Speed	m/min	105
Punching Speed at 25mm pitch	hits/min.	250
Nibbling Speed (stroke length 4mm, pitch 1mm)	hits/min.	360
Tool Type		Thick turret
Max Punching Diameter	mm	88.9
Number of Tool Stations		32/ ※ 24
Numer of Auto Index Stations	pcs(type)	2B
Turret Rotating Speed	rpm	33
Auto Index Rotating Speed	rpm	100
Ram Stroke Distance	mm	0-31
Working Table		Brush Supporting Ball Set
Number of Sheet Clamps	pcs	3
Power Supply	KVA	24
Air Supply	NL/min	250
Air Pressure	bar	6
Size of Control Cabinet	mm	1200 × 600 × 1900
Number of Controllable Axis	Axis	4
RAM Memory	KB	512
Serial Interface		RS232 / RJ45 / PCMCIA
Punching Precision	mm	±0.1
Machine Dimension (L × W × H)	mm	4687 × 5102 × 2385
Net Weight (approx.)	kgf	13000

Specifications are subject to change without prior notice.
Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

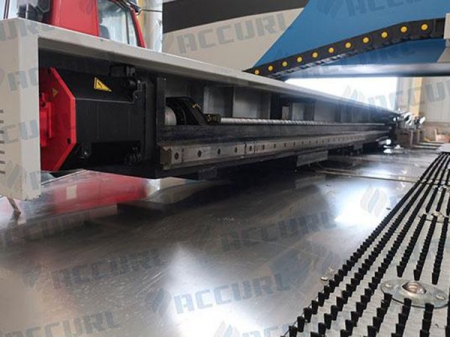

Detailed Pictures

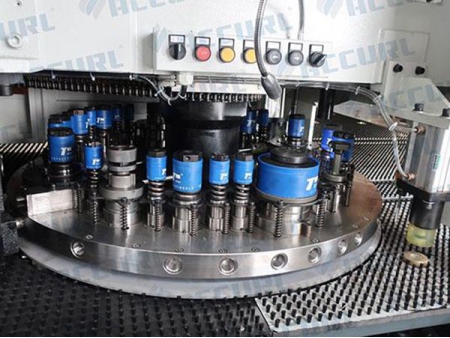

32 Stations 2 Auto index for Accurl CNC Punch
