Features of Cyclonic Jet Mill and Classifier LHA
  • The functions of jet mills and classifiers are both available here.
  • Classifier with different classification grades (1-4 grade) can all be installed on our cyclonic jet mills; as a result, our jet mills can manufacture products with different particle size distributions at the same time.
  • Compared with traditional air pulverizers, LHA cyclonic jet mills have higher yield of qualified product while producing products with narrow particle size distribution (PSD).
  • Suitable for crashing materials with wide range of size and the max. size can be 5mm.
  • Our cyclonic jet mills and classifiers are especially suitable for pulverizing particles with high hardness and high purity.
Parameters of Cyclonic Jet Mill and Classifier LHA
Data \ Model LHA-3 LHA-6 LHA-10 LHA-20 LHA-40 LHA-60 LHA-120
Feed size(mm) ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3 ≤ 3
Fineness(um) 2~150 2~150 2~150 2~150 2~150 2~150 2~150
Capacity(kg/h) 20~150 60~300 120~700 250~1500 600~3000 1000~4500 2000~10000
Air consumption (m3/min) 3 6 10 20 40 60 120
Air pressure(MPa) ≥0.8 ≥0.8 ≥0.8 ≥0.8 ≥0.8 ≥0.8 ≥0.8
Installed power(kw) 32.5 60 85 172.5 317.5 461 887
Process Flow of Cyclonic Jet Mill and Classifier LHA
Flow Chart I

1. Air compressor
2. Air storage tank
3. Freeze drying machine
4. Feeding System

5. Classifier
6. Main machine of jet grinding mill
7. Classifier I
8. Classifier II

9. Cyclonic collector
10. Pulse bag-type collector
11. Induced draft fan


Flow Chart II

1. Air compressor
2. Air storage tank
3. Freeze drying machine
4. Feeding System

5. Classifier
6. Main machine of jet mill
7. Classifier

8. Cyclone dust collector
9. Pulsed dust collector
10. Induced draft fan

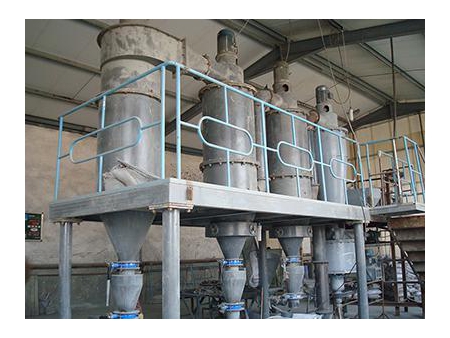

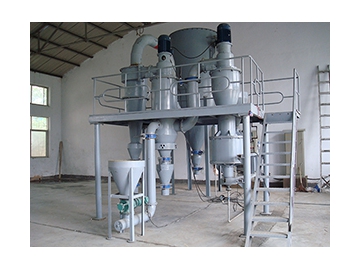

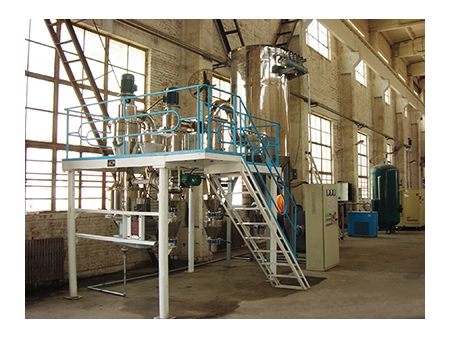

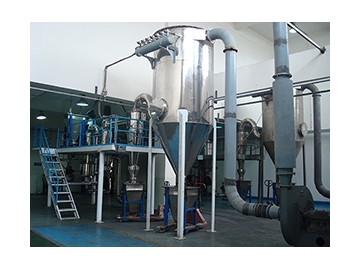

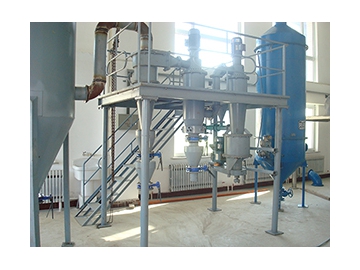

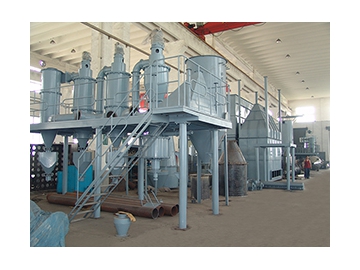

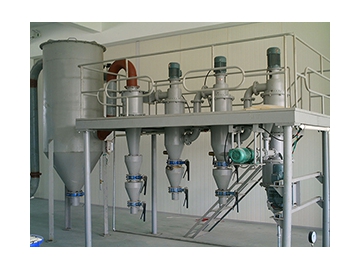

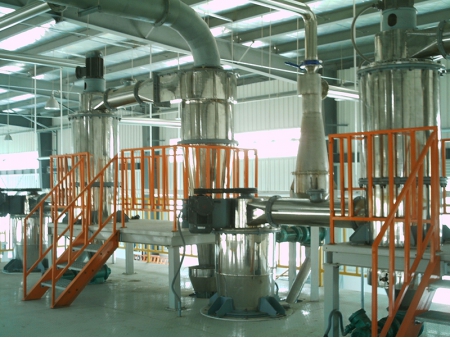

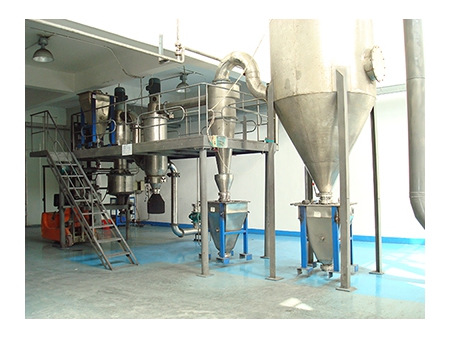

Work site
LHA carton steel
LHA stainless steel
