K6VE (Replacement for A6VE Series 63&65&71) Replacement hydraulic motor for A6VE series 63&65&71 axial piston variable motor
Request a Quote
- High pressure motors suitable for integration into mechanical gearboxes
- Series 63, 65, 71
- Nominal size 28, 55, 80, 107, 160, 170, 200, 250
- Nominal pressure 400 bar
- Maximum pressure 450 bar
- Hydrostatic drive for open and closed circuits
Features
- Variable plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
- Easy to install by simply pluging the pump into the mechanical gearbox
- Stepless displacement adjustment from V g max to Vg min = 0
- Wide control range, to meet the requirements of high speed and high torque
- Recessed mounting flange to save space
Technical Parameters
Size | | | | | | | | | |||
Series | 63 | 65 | 65 | 65 | 65 | 71 | 65 | 63 | |||
Displacement | Vg max | cm³ | 28.1 | 54.8 | 80 | 107 | 160 | 170 | 200 | 250 | |
Vg x | cm³ | 18 | 35 | 51 | 68 | 61 | 65 | 76 | 188 | ||
Vg min | cm³ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
Nominal pressure | pnom | bar | 400 | 400 | 400 | 400 | 400 | 450 | 400 | 350 | |
Max. pressure | pmax | bar | 450 | 450 | 450 | 450 | 450 | 530 | 450 | 400 | |
Max. speed | at Vg max | nnom | rpm | 5550 | 4450 | 3900 | 3550 | 3100 | 3100 | 2900 | 2700 |
at Vg < Vg max | nmax | rpm | 8750 | 7000 | 6150 | 5600 | 4900 | 4900 | 4600 | 3300 | |
at Vg min | nmax 0 | rpm | 10450 | 8350 | 7350 | 6300 | 5500 | 5750 | 5100 | 3300 | |
Inlet flow | at Vg max and nnom | qV nom | l/min | 156 | 244 | 312 | 380 | 496 | 533 | 580 | 675 |
Torque | at Vg max and pnom | M | Nm | 179 | 349 | 509 | 681 | 1019 | 1218 | 1273 | 1391 |
Weight (approx.) | m | kg | 16 | 28 | 34 | 47 | 64 | 64 | 80 | 110 |
Applications

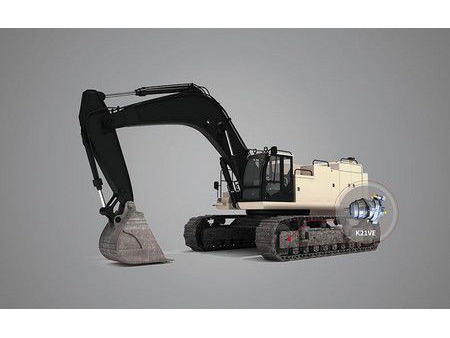

- Excavator

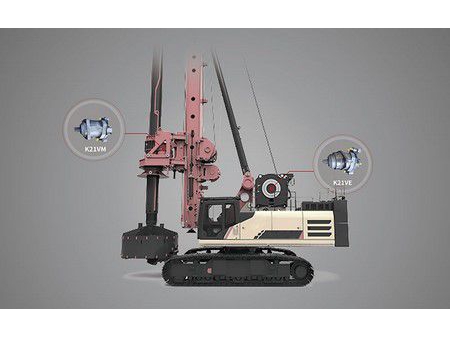

- Rotary drilling rig
