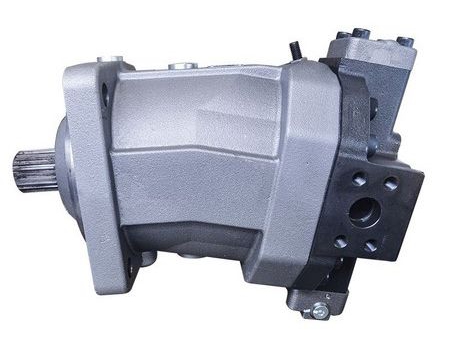

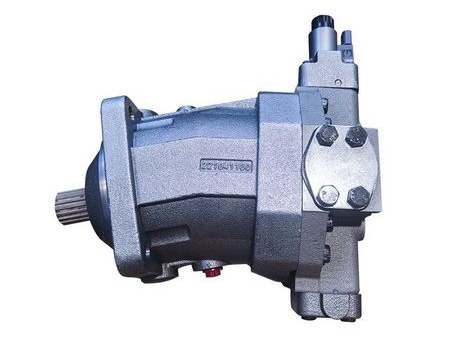

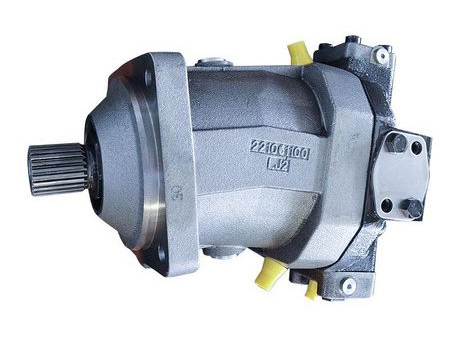

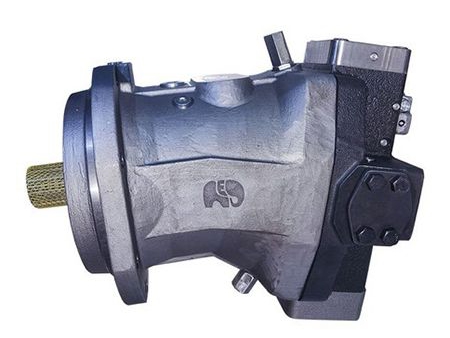

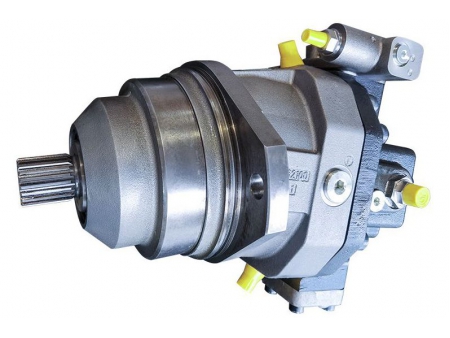

K6VM (Replacement for A6VM Series 63&65&71) Replacement hydraulic motor for A6VM series 63&65&71 axial piston variable motor
Request a Quote
- All-purpose high pressure motor
- Series 63, 65, 71
- Nominal sizes: 80, 107, 160, 170, 200, 215, 500
- Nominal pressure 400 bar
- Maximum pressure 450 bar
- Stepless displacement adjustment from 0 to maximum
- Hydrostatic drive for open and closed circuits
Features
- Drive shaft capable of withstanding axial and radial loads
- Swashplate angle indicator
- Optional mounting position
- Modular design, good power/weight ratio
- Short control time
- Operation on HF fluids possible with reduced operating parameters
Technical Parameters
Size | | | | | | | | |||
Series | 65 | 65 | 65 | 71 | 65 | 71 | 63 | |||
Displacement | Vg max | cm³ | 80 | 107 | 160 | 170 | 200 | 215 | 500 | |
Vg x | cm³ | 51 | 68 | 61 | 65 | 76 | 130 | 417 | ||
Vg min | cm³ | 0 | 0 | 0 | 0 | 0 | 0 | 0 | ||
Nominal pressure | pnom | bar | 400 | 400 | 400 | 450 | 400 | 400 | 350 | |
Max. pressure | pmax | bar | 450 | 450 | 450 | 530 | 450 | 450 | 400 | |
Max. speed | at Vg max1) | nnom | rpm | 3900 | 3550 | 3100 | 3100 | 2900 | 2900 | 2000 |
at Vg < Vg x | nmax | rpm | 6150 | 5600 | 4900 | 4900 | 4600 | 4800 | 2650 | |
at Vg min | nmax 0 | rpm | 7350 | 6300 | 5500 | 5750 | 5100 | 5500 | 2650 | |
Inlet flow 2) | at Vg max and nnom | qV nom | l/min | 312 | 380 | 496 | 533 | 580 | 628 | 1000 |
Torque | at Vg max and pnom | M | Nm | 509 | 681 | 1019 | 1218 | 1273 | 1550 | 2785 |
Weight (approx.) | m | kg | 34 | 47 | 64 | 64 | 80 | 80 | 210 |
Applications

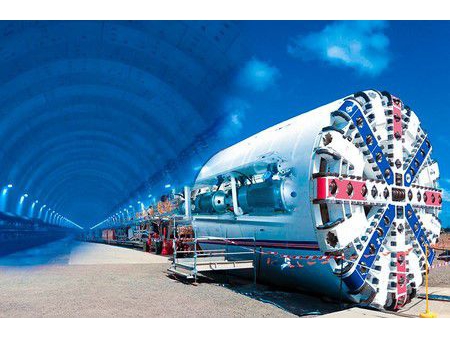

- Shield machine
- Crane
- Excavator
- Roller
