KCH-400D Horizontal flow wrapper

KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
KCH-400D Horizontal flow wrapper
Request a Quote

The KCH-400D Flow wrapper packaging machine can process film with a maximum width of 400mm and fin sealing bags with maximum widths of 190mm. This equipment is particularly suitable for materials that require relatively tall height.

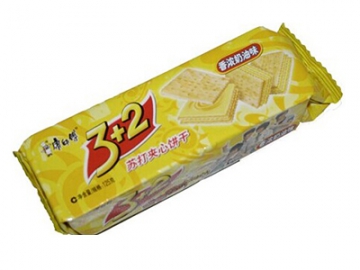

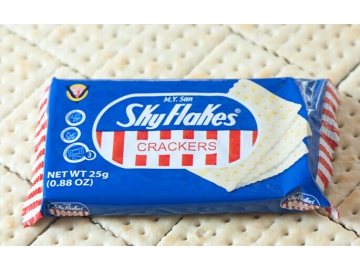

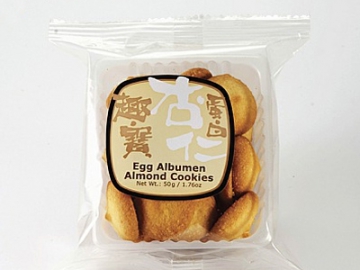

Bag types and samples

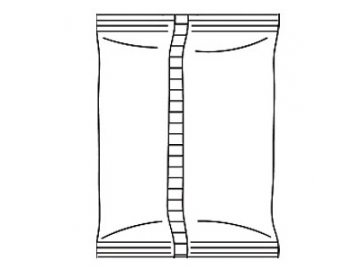

  • Pillow bag

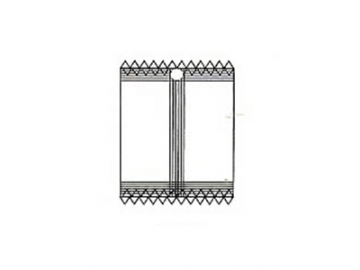

  • Pillow bag with euro hole

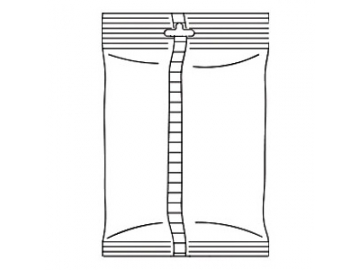

  • Pillow bag with round hole

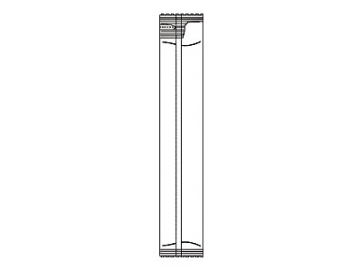

  • Stick seal bag

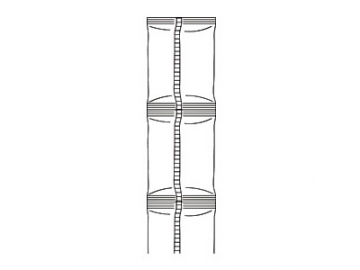

  • Linking bag
Specification
Model KCH-400D
Film width Max. 400mm
Bag length 150-400mm
Bag width 30-190mm
Product height Max.80mm
Film diameter Max. 320mm
Packing speed 40-1800 packages / min
Machine dimensions (L)4020X(W)800X(H)450mm
Machine quality 400kg

Details

The wrapping machine is equipped with an independently designed wheeled heat sealing device, which ensures a complete sealing performance, even when using packaging material like CPP packaging film.

The conveyor of the pillow packaging machine is made of 304 stainless steel, making it stable, healthy and safe to use.

The large touch screen features clear parameters, and it is easy to set parameters.

The packaging machine is equipped with an ink roll coding machine to print dates, marks and other items in a complete, clear process.

The flow-pack wrapper is equipped with telescopic film placing device, with a maximum film width of 400mm and a maximum film diameter of 350mm.

The film wrapping machine is equipped with a highly sensitive sensor to achieve location and cutting off, thus the bag length error is within 2mm. If the blade gets stuck, it will automatically, immediately reverse to protect the mold.
