Compression Testing Machine

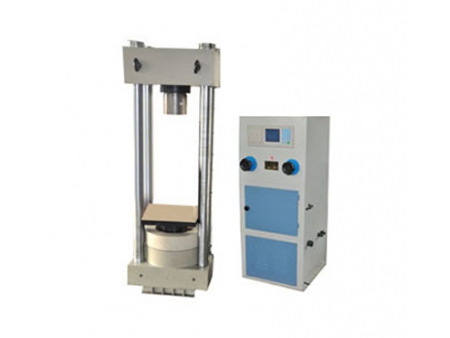

TBTCTM-1000, 2000N compression testing machine is used to evaluate compressive strength of building materials such as brick, cement mortar and concrete.
| Max. capacity | 1000kN | 2000kN |
| Measuring range | 0-1000kN | 0-2000kN |
| Relative Error | ±1% | ±1% |
| Platen size | 220×280mm | 220×290mm |
| Max. vertical clearance between platen | 320mm | 330mm |
| Max. travel of piston | 40mm | 40mm |
| Diameter of piston | Ф250mm | Ф250mm |
| Rated pressure of oil pump | 40Mpa | 40Mpa |
| Power supply | 220V AC, 750W | 220V AC, 750W |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Digital display controller | 1pc |
| 3 | Micro printer | 1pc |
| 4 | Operation manual | 1pc |
| 5 | Certificate of quality | 1pc |

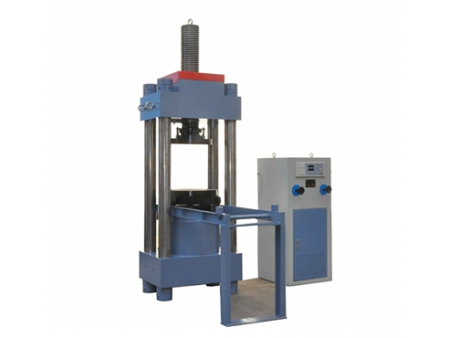

With appropriate clamping jaws and measuring device, TBTCTM-2000S compression testing machine can be used for tests such as concrete splitting tensile, bending and static elastic modulus test.
| Max. capacity | 2000kN |
| Measuring range | 0-2000kN |
| Relative error | ±1% |
| Platen size | Ф250mm |
| Max. vertical clearance between platens | 320mm |
| Max. travel of piston | 100mm |
| Diameter of piston | Ф250mm |
| Rated pressure of oil pump | 40Mpa |
| Power supply | 220V AC, 750W |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Digital display controller | 1pc |
| 3 | Micro printer | 1pc |
| 4 | Operation manual | 1pc |
| 5 | Certificate of quality | 1pc |
TBTCTM-100, 300 compression testing machine is used to test compressive strength of building materials such as brick, cement mortar and concrete.
| Max. capacity | 100kN | 300kN |
| Relative error | ±1% | ±1% |
| Platen dimension | Ф125mm | Ф125mm |
| Max. vertical clearance between platens | 180mm | 180mm |
| Max. travel of piston | 80mm | 80mm |
| Diameter of piston | Ф125mm | Ф125mm |
| Rated pressure of oil pump | 25Mpa | 25Mpa |
| Power supply | 220V AC, 750W | 220V AC, 750W |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Digital display controller | 1pc |
| 3 | Micro printer | 1pc |
| 4 | Operation manual | 1pc |
| 5 | Certificate of quality | 1pc |
| 6 | 40*40mm compression jig | 1pc |

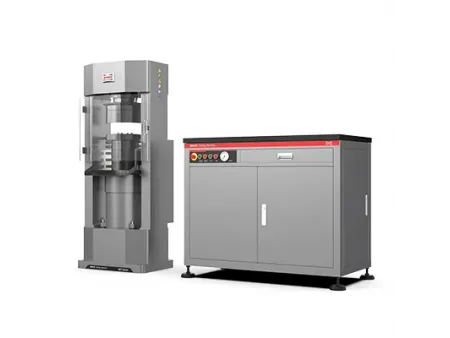

TBTCTM-5000S compression testing machine is designed to measure compressive strength of building materials, mechanical properties of lifting jacks and compressive strength of metal or metal components. The PC control and servo control options both are available.
| Max. capacity | 5000kN |
| Measuring range | 0-5000kN |
| Relative error | ±1% |
| Max. vertical clearance between platens | 650mm |
| Max. travel of piston | 80mm |
| Diameter of piston | Ф420mm |
| NO. | Description | Q'ty |
| 1 | Main unit | 1pc |
| 2 | Digital display controller | 1pc |
| 3 | Micro printer | 1pc |
| 4 | Operation manual | 1pc |
| 5 | Certificate of quality | 1pc |
TBTCTM-12000S compression testing machine is used to test compressive strength of building materials, lifting jacks and metal components.
| Max. capacity | 12000kN |
| Measuring range | 0-12000kN |
| Relative error | ±1% |
| Max. vertical clearance between platens | 1500mm |
| Max. travel of piston | 120mm |
| Diameter of piston | Ф630mm |
| NO. | Description | Q'ty |
| 1 | Main dnit | 1pc |
| 2 | Digital display controller | 1pc |
| 3 | Micro printer | 1pc |
| 4 | Operation manual | 1pc |
| 5 | Certificate of quality | 1pc |

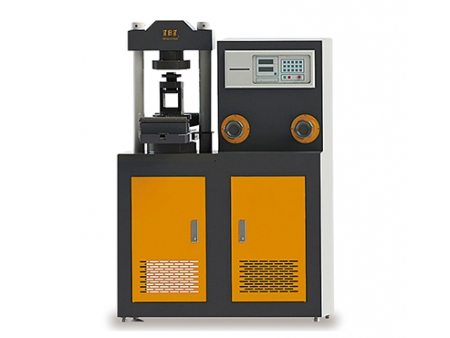

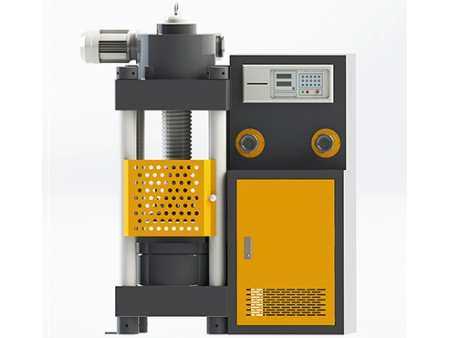

TBTCTM-2000SE, 3000SE are integrated compression machine.
The machine applies constant loading on specimen driven by electro-hydraulic system, the applied loading is digital displayed real time, data is measured by electronic device then saved and processed automatically, the peak loading will be hold and displayed to avoid electric blackout.
The vertical compression space is adjusted by electric screw.
| Max. capacity | 2000kN | 3000kN |
| Measuring range | 0-2000kN | 0-3000kN |
| Relative error | ±1% | ±1% |
| Platen size | 260×320mm | 340×340mm |
| Max. vertical clearance between platens | 300mm | 330mm |
| Max. travel of piston | 40mm | 40mm |
| Diameter of piston | Ф250mm | Ф310mm |
| Rated pressure of oil pump | 40Mpa | 40Mpa |
| Power supply | 220V AC, 750W | 220V AC, 750W |
| NO. | Description | Q'ty |
| 1 | Digital display controller | 1pc |
| 2 | Protective defence | 1set |
| 3 | Micro printer | 1pc |
| 4 | Spacer | 1pc |

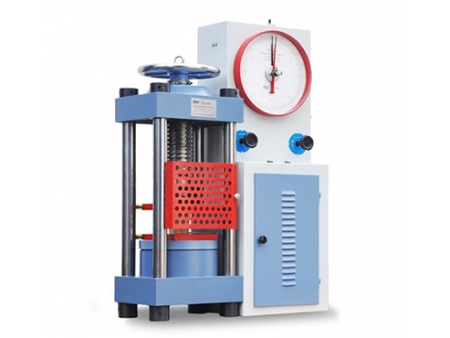

TBTCTM-1000D, 2000D Analog Compression Testing Machine is intended for measuring compressive strength of building materials such as brick, cement mortar and concrete.
| Max. capacity | 1000kN | 2000kN |
| Measuring range | 0-1000kN | 0-2000kN |
| Relative error | ±1% | ±1% |
| Platen size | 220×280mm | 220×290mm |
| Max. vertical clearance between platen | 320mm | 330mm |
| Max. travel of piston | 40mm | 40mm |
| Diameter of piston | Ф250mm | Ф250mm |
| Rated pressure of oil pump | 40Mpa | 40Mpa |
| Test force grading | 0-500kN, 0-1000kN | 0-800kN, 0-2000kN |
| Power supply | 220V AC, 750W | 220V AC, 750W |
Designed with digital display, this universal testing machine is used to test compression strength of building materials such as brick, cement mortar and concrete. Driven by electro-hydraulic system, the material testing equipment applies an load on specimen, which provides a real-time load display. The data is measured by electronic device, then saved and processed automatically. The peak load will be maintained and displayed to avoid electric blackout.
| Model | TBTCTM-Y2000 |
| Capacity | 2000KN max. |
| Measuring range | 0~2000 |
| Relative error | ±1% |
| Pressure plate size | D250*T33mm (round) upper plate D250*T40mm (round) lower plate |
| Bearing plate size | D200*T50mm *3pcs D200*T77mm *1pc |
| Maximum distance between upper and lower plate | 330mm |
| Piston stroke | 100mm |
| Power supply | 220VAC 750W |
| Dimensions | Around 900×400×1000 (L*W*H) |
| Net weight | Around 700kg |
