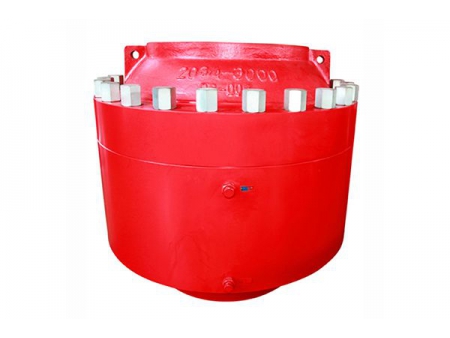

Annular Blowout Preventer with Spherical Rubber
An annular BOP with spherical rubber is a type of blowout preventer for oil and gas drilling as well as mining and other industries. The BOP works mainly to stop any liquid from surfacing in a dangerous explosion to create a safe working environment. Your consulting is welcomed at any time if you need to know more about our blowout preventers.
Features
- The annular BOP can divert the spraying of oil and gas and limit the spraying area to minimize risks of potential accidents.
- The annular BOP’s spherical rubber features high strength and flexibility and thus is wear-resistant and anticorrosive, ensuring long-term reliable operation in tough conditions.
- Different sizes of annular BOPs are available and can be selected for diverse applications.
- The blowout preventer can be installed directly on existing pipe systems.
Technical Parameters
| Model | FH18-21 | FH18-35 | FH23-21 | FH23-35 | FH28-14 | FH28-21 | FH28-35 | FH35-21 | FH35-35 | FH48-35 | FH53-21 | FH54-35 |
| No. | RS11827 | RS11168 | RS11143 | F9303 | RS11878 | RS11150 | RS11135 | RS11186 | F35 | RS11845 | RS111100 | RS11801 |
| Bore Size | 179.4mm 7 1/16" | 179.4mm 7 1/16" | 228.6mm 9" | 228.6mm 9" | 279.4mm 11" | 279.4mm 11" | 279.4mm 11" | 346.1mm 13 5/8" | 346.1mm 13 5/8" | 476.3rm 18 3/8" | 527rm 20 3/4" | 539.7 mm 21 1/4" |
| Rated Working Pressure | 21MPa 3000 psi | 35MPa 5000psi | 21 MPa 3000 psi | 35MPa 5000psi | 14MPa 2.000 psi | 21MPa 3000 psi | 35MPa 5000 psi | 21MPa 3000 psi | 35MPa 5000 psi | 35MPa 5000 psi | 21MPa 3000 psi | 35MPa 5000psi |
| Max. Hydraulic Pressure | 14MPa | 14MPa | 14MPa | 14MPa | 14MPa | 14MPa | 14MPa | 14MPa | 14MPa | 14MPa | 14 MPa | 14MPa |
| 2000 psi | 2000 psi | 2000psi | 20C0psi | 2000 pi | 2000 psi | 2000psil | 2000 psi | 2000 psi | 2000psi | 2000 psi | 2000psi | |
| Recommended Hydraulic Control Working Pressure for Closed Pipe String | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 poi | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 psi | ≤105MPa ≤1500 psi | ≤10.5MPa ≤15C0 psi | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 psi | ≤10.5MPa ≤1500 psi |
| Oil Consumption to Open | 15L 3.92 gal | 15L 3.92 gal | 22.8L 6.02 gal | 33L 8.72 gal | 33L 8.72 gal | 33L 8.72 gal | 56L 14.79gal | 72L 19.02 gal | 72L 19.02 gal | 172L 45.44 gal | 110L 23.06 gal | 171L 5.17 gal |
| Oil Consumption to Close | 21L 5.55gal | 21 L 5.55gal | 34L 8.98gal | 42L 11.10gal | 46L 12.15 gal | 46L 12.15gal | 72L 19.02 gal | 98L 25.89gal | 98L 259gal | 220L 58.12 gal | 173L 45.70 gal | 227L 59.97 gal |
| Overall Dimensions (O. D) | 745mm 29 33" | 745mm 29 33" | 908mn 35.75" | 1016 mm 40.00" | 1013 mm 39.88" | 1013 mm 39.88" | 1146 mm 45.12" | 1271 mm 50.04" | 1271 mm 50.04" | 1780mm 70.08" | 1375rm 54.13" | 1938 mm 76.30" |
| Overall Dimensions (Height) | 842mm | 842mm | 838 mm 32.99" | 924mm 36.38" | B55 mm 33.66" | 873 mm 34.37" | 1110mm 43.70" | 1170mm 46.30" | 1176mm 46.30" | 1710mm 67.32" | 1233 mm 50.91" | 1742mm 68.58" |
| 33.15" | 33.15" | |||||||||||
| Weight | 1433kg 3159 lb | 1520 kg 3351 lb | 244okg 5379 lb | 305o kg 6724 lb | 3512kg 7743b | 3400kg 7436 b | 4716kg 10397 lb | 5700kg 12506b | 6415kp 14143ib | 16320kg 35979 lb | 6994kg 1549ib | 20220 kg 44577 lb |
