Metal Cutting Machine
Future H Series
Metal Cutting Machine
Future H Series
Future H series CNC fiber laser cutting machine is designed for high-power cutting applications, enabling ultra-high-speed cutting of thin sheets and efficient processing of medium-thick plates. This metal cutting machine excels in the processing of various metal materials.
Capability
Laser source: 12000W, 15000W, 20000W
Applications
- Metal roofing panel cutting
- Auto body fabrication process
- Heavy machinery manufacturing
- Heavy duty pipe cutting
- Enclosure/Cabinet bending processing
- Kitchenware bending
- Processing of agricultural machinery components
- Vehicle maintenance
Parameters
| Model | |||||
| Cutting range (mm) | 3000*1500 | 4000*2000 | 6000*2500 | 8000*2500 | 12500*2500 |
| X axis stroke (mm) | 1550 | 2050 | 2550 | 2500 | 2500 |
| Y axis stroke (mm) | 3050 | 4050 | 6050 | 8050 | 12050 |
| Z axis stroke (mm) | 300 | ||||
| X/Y axis positioning accuracy (mm/m) | ±0.05 | ||||
| X/Y axis repeat positioning accuracy (mm/m) | ±0.03 | ||||
| Max. positioning speed of X/Y axis (m/min) | 110 | ||||
| Max. acceleration of X/Y axis (g) | 1.2 | ||||
| Laser cutting source power (W) | ≤20000 | ||||
Details

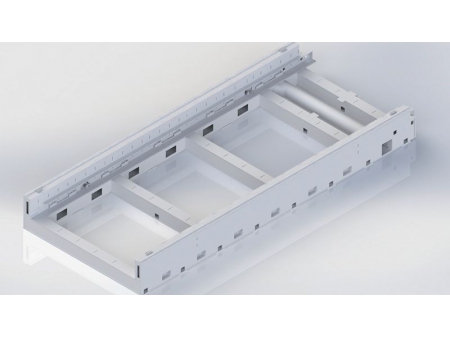

- Semi-hollow structure bed (Patented)

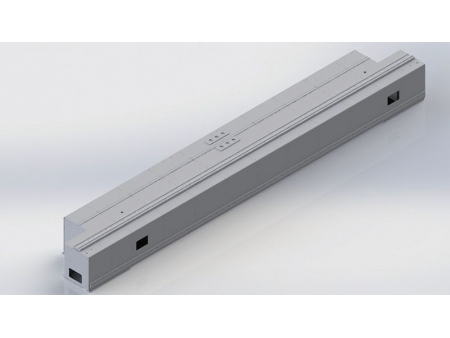

- High rigidity, lightweight welded steel beam
- User-friendly, easy-to-operate BOCHU FSCUT8000 CNC System
- Precitec fiber cutting head
- Dual-proportional valve air circuit control
- Dual-side zoning exhaust design
Ensures efficient dust removal and environmental friendliness
- High-speed double exchange worktable
