CNC Fiber Laser Cutting Machine
Request a Quote
(500W 700W 1000W High Power IPG Fiber Laser)
The CNC fiber laser cutting machine is widely used for cutting all kinds of material, such as aluminum alloy, copper, brass, etc. This fiber laser is more efficient compared with the laser source for cutting high reflective material. This fiber laser machine can cut materials with various thicknesses, such as 22mm thick low carbon steel. In comparison with CO2 laser cutting machine, it features higher cutting efficiency, free maintenance and cost reduction by 70%.
Features
- Compared with CO2 laser, only 70％ power consumption needed
- Cutting speed up to 300％
- High wall plug efficiency (>30%)
- Flexible light path
- Maintenance-free
- Cutting capability for copper and brass
- High output
- High optical quality
- Small size
- High reliability
Standard Equipment Sets

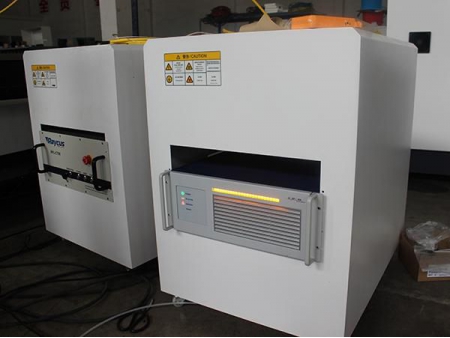

- IPG YLS-500W, 700W, 1000W Ytterbium Laser Resonator
- Linear Driven X, U and Y Axes

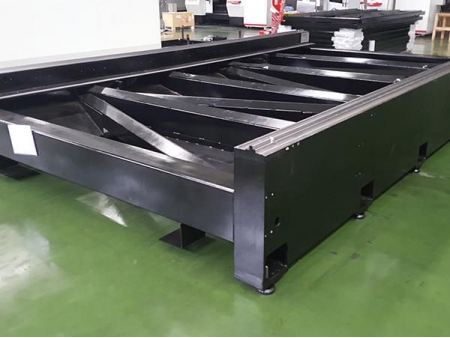

- High Rigid Frame
- Empower or FAGOR CNC Controller

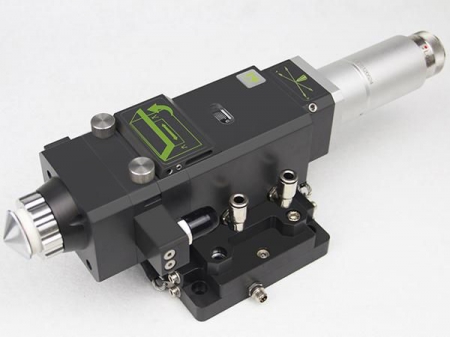

- Precitec Cutting Head
- Lantek Software
- Shuttle Table
- Chiller Unit
- Proportional Gas and Piping System
- Dust Filter
- Compressor
- Conveyor for Scraps
Specifications
| Model | KJG-1530 / IPG 500w | |
| Maximum cutting capacity | Mild steel | 6mm |
| Stainless steel | 2.5mm | |
| Aluminyum | 2mm | |
| Copper | 1mm | |
| Laser Power | YLR-500Watt | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | RayTools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |
| Model | KJG-1530 / IPG 700w | |
| Maximum cutting capacity | Mild steel | 8mm |
| Stainless steel | 3mm | |
| Aluminyum | 2.5mm | |
| Copper | 1.5mm | |
| Laser Power | YLR-700Watt | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | RayTools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |
| Model | KJG-1530 / IPG 1000w | |
| Maximum cutting capacity | Mild stee | 10mm |
| Stainless steel | 4mm | |
| Aluminyum | 3mm | |
| Copper | 2mm | |
| Laser Power | YLR-1000Watt | |
| Max running speed | 40/min | |
| Work piece dimensions | 1500 x 3000mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 1.2G (12m/s2) | |
| Absolute positioning accuracy | ± 0.03 mm | |
| Max. load capacity | 1550 kg | |
| Fume extractor | 1000 m3/hour | |
| Laser Cutting Head | RayTools BM110 from Switzerland | |
| Feed rate | Programmable up to 30 m/min. | |
| Applied Materials | Thin mild steel, Stainless steel, Aluminum, Copper plate | |

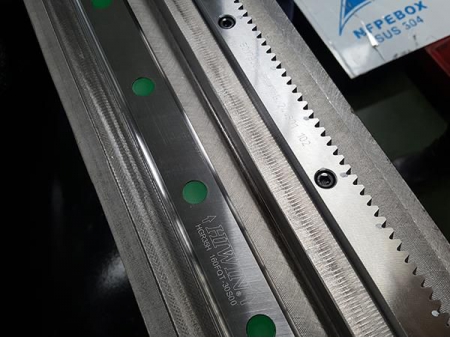

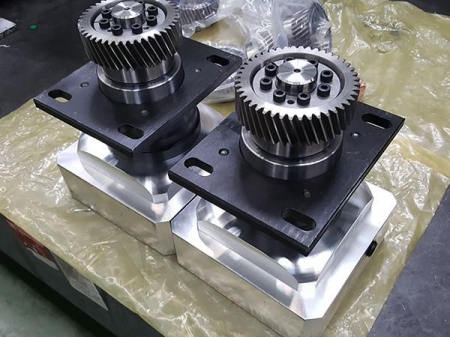

Detailed Pictures
