Locking Ring binder Mechanism
Request a Quote

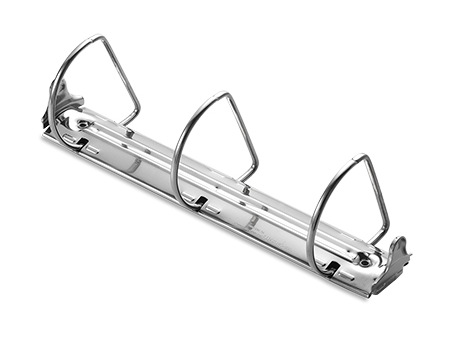

3-Ring Locking Ring Binder Mechanism, 285mm Total Length
| Item No. | Ring Distance | Total Height | Inner Height | Outer Width | Hole Distance | Total Length | Width of Mechanism |
| LOH285-3-38/26 | 108/108 | 43.5 | 31.5 | 44 | 243 | 285 | 26 |
| LOF285-3-50/26 | 108/108 | 58.7 | 44.8 | 55.5 | 243 | 285 | 26 |
| LOR285-3-65/36 | 108/108 | 76.6 | 60.5 | 73 | 243 | 285 | 36 |
| LOR285-3-78/36 | 108/108 | 89.5 | 73.5 | 83 | 243 | 285 | 36 |
| LOF285-3-78/45 | 108/108 | 89.5 | 72 | 84 | 243 | 285 | 45 |
| LOSD285-3-38/26 | 108/108 | 46 | 34 | 52 | 243 | 285 | 26 |
| LOSD285-3-52/26 | 108/108 | 60 | 49 | 55 | 243 | 285 | 26 |
| LOSD285-3-63/36 | 108/108 | 75 | 60 | 71 | 243 | 285 | 38 |
| LOSD285-3-76/36 | 108/108 | 86 | 70 | 76 | 243 | 285 | 36 |
| LOSD285-3-78/45 | 108/108 | 89.6 | 72 | 87 | 243 | 285 | 45 |
| LOSD285-3-102/45 | 108/108 | 115 | 98 | 88 | 243 | 285 | 45 |
| LCSD285-3-127/45 | 108/108 | 142 | 125 | 100 | 243 | 285 | 45 |
| LOS0285-3-127/55 | 108/108 | 145 | 125 | 118 | 243 | 285 | 55 |
Locking Ring Binder Mechanism, 300mm Total length
| Item No. | Ring Distance | Total Height | Inner Height | Outer Width | Hole Distance | Total Length | Width of Mechanism |
| LOR300-30-18/22 | 9.5x29 | 23.5 | 12 | 22 | 123.5/123.5 | 300 | 22 |
| LOR300-30-25/22 | 9.5x29 | 30 | 27.5 | 55.5 | 123.5/123.5 | 300 | 22 |
