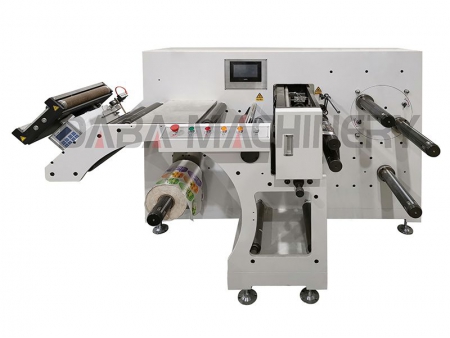

High Speed Narrow Web Slitter Rewinder, DBFQ-370
Request a Quote
Label converting machine
Daba Machinery offers you a high speed narrow web slitter rewinder among our label production lines. The high speed narrow web slitter rewinder can cut materials with widths ranging from 20mm to 370mm at a maximum speed of 200 meters per minute, ensuring ultra-high efficiency cutting. With easy length adjustment and user-friendly controls, it offers both manual and automatic modes. Suitable for cutting various narrow and thin rolls of materials.
Applicable Materials

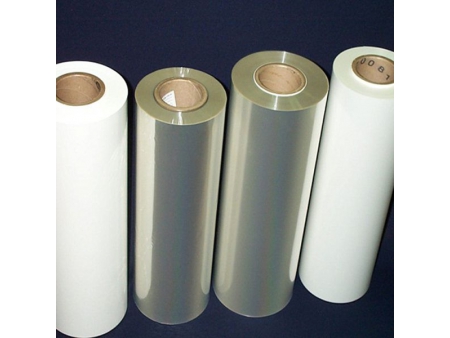

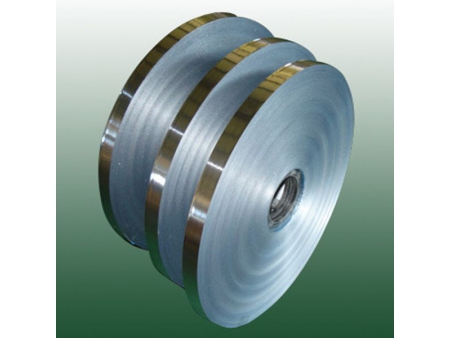

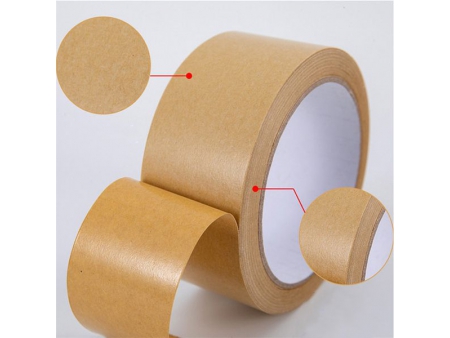

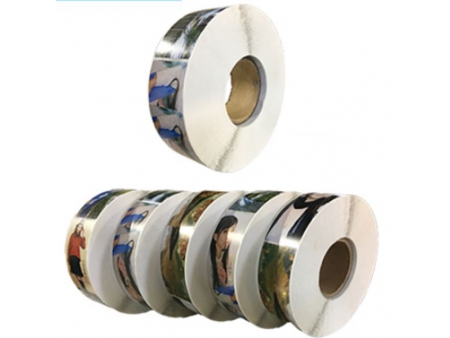

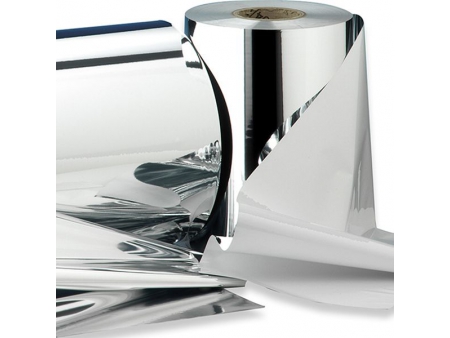

Insulation materials, mica tapes, films, blank label paper, kraft paper, aluminum foil, and more.
Specifications
- Model: DBFQ-370
- Maximum Substrate Width: 370mm
- Maximum Slitting Width: 370mm
- Minimum Slitting Width: 20mm
- Maximum Slitting Speed: 200m/min
- Automatic Tension Control: Yes
- Maximum Unwinding Diameter: 700mm
- Maximum Rewinding Diameter (Upper Rewinder): 250mm
- Maximum Rewinding Diameter: 700mm
- Slitter: Round/square optional
- Number of Slitters: 6 (standard)
- Number of Rewinders: 3
- Upper Rewinder: Turret style, equipped with one servo motor system
- Guide Rail System: EURDOW (China)
- Accuracy: ±0.1mm
- Dimensions (L*W*H): 1700*1200*1300mm
- Weight: 750kg
Features
- The unwinding unit adopts a high-precision photoelectric correction system.
- Automatic tension control system is equipped for unwinding and rewinding.
- The slitting machine has functions of automatic stop and length counting.
- Equipped with a trimming device with a blower disposing waste materials.
Details

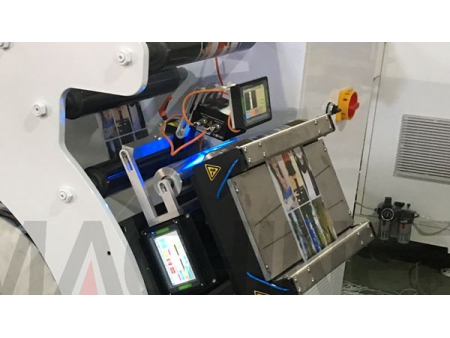

- Guide Rail Unit
Standard
- EURDOW (ultrasonic)
- Detection Range: 5mm
- Accuracy: ±0.1mm
Optional
- PAUSOURCE (CCD)
- Detection Range: 20mm
- Accuracy: ±0.02mm
- Printing Unit
Standard

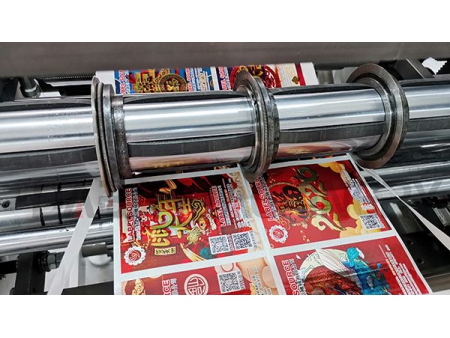

- Round slitter
- 6 slitters/station
- Thickness: 15mm
Optional
- Square slitter
- Thickness: 12mm
- Drying unit
Standard
- 3-inch
Optional
- 1-inch/2-inch
