Label Slitter Rewinder, DBFQD-320
Request a Quote
Label converting machine
Presenting the most classic one in our slitting machine series, the DBFQD-320 label slitter rewinder. It boasts both cost-effectiveness and the maximum cutting speed of 120m/minute, making it a budget option for label converting and boosting production efficiency. This label slitter rewinder is designed with precision, compact structure, and excellent processing technology. It is one of the most advanced cutting machines the China offers.
Applicable Materials

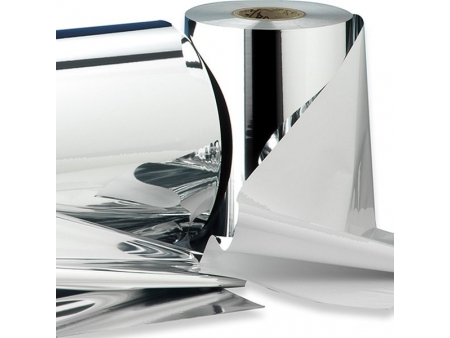

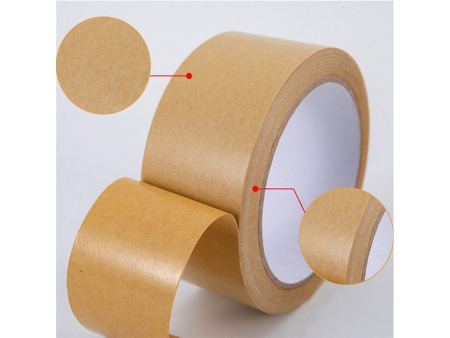

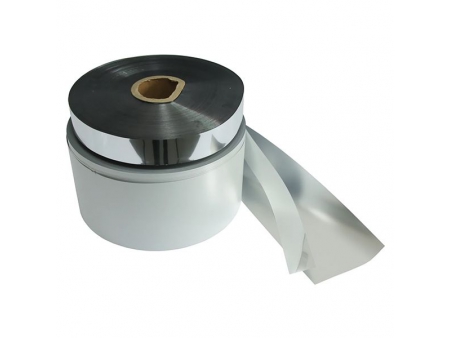

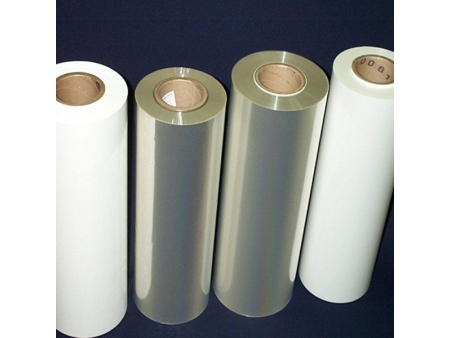

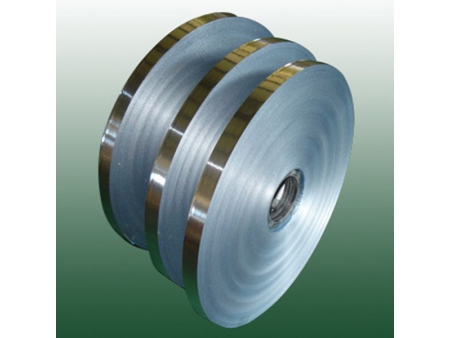

Self-adhesive materials, thermal paper, cardboards, breathable films, aluminum foils, PVC, PET, etc.
Specifications
| Model | BDFQD-320 |
| Dimensions (L*W*H) | 1200×800×120mm |
| Maximum Unwinding Diameter | 700mm |
| Maximum Rewinding Diameter | 500mm |
| Maximum Slitting Width | 320mm |
| Slitting Speed | 0-120m/min |
| Total Power | 4.5kw |
| Weight | 500kg |
Features
- The main motor is controlled by a brushless DC motor (BLDC) system.
- Automatic counter alerts and stops the machine when reaching preset limits.
- EPC (Edge Position Control) adopts dual photoelectric sensors.
- Air expanding shafts are used for rewinding and unwinding, making it convenient for material handling.
Details

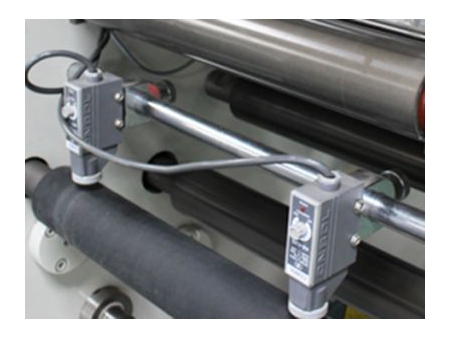

- Guide Sensor

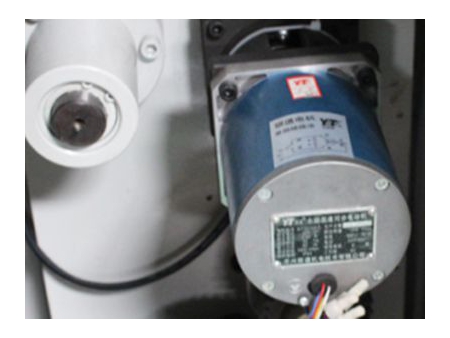

- Guide Electric Motor

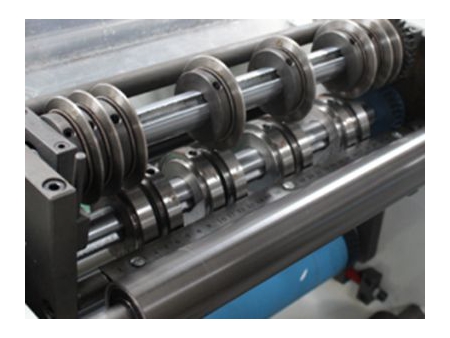

- Slitting Position

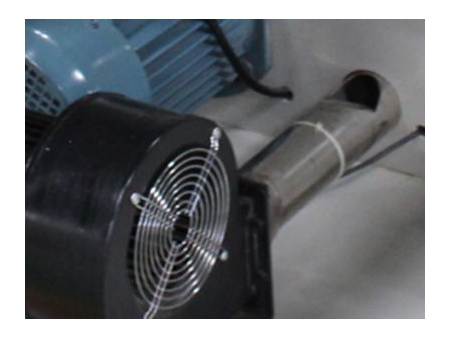

- Blower

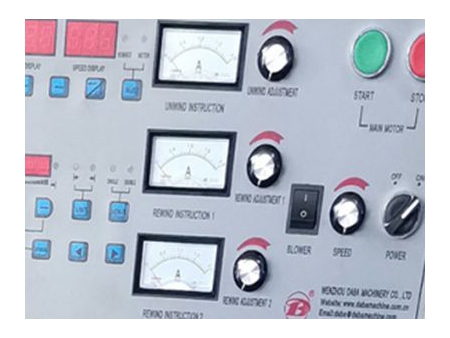

- Operation Panel
