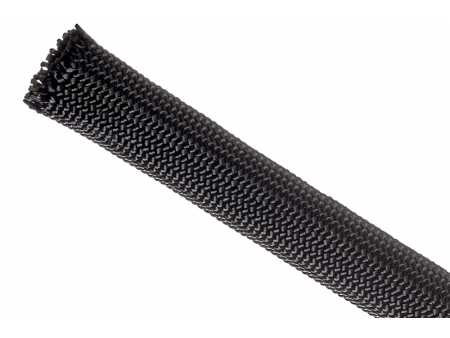

Nylon Multifilament Braided Sleeving
Request a Quote
Material: Nylon multifilament
Flammability: VW-1
Operating temperature range: -45° ~ 120 °C
Melt Temp.:482°F / 250°C.
Operating range: -60℃- 160℃
Certification: RoHS

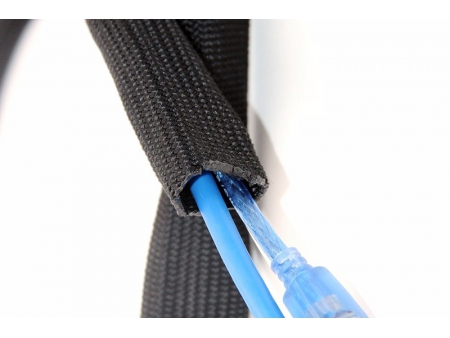

Nylon multifilament braided sleeving is the perfect sleeving product to protect and enhance the appearance of wires and cables. The nylon multifilament braided sleeve is highly resistant to abrasion, cuts, common marine and automotive chemicals, UV damage, and vibration.

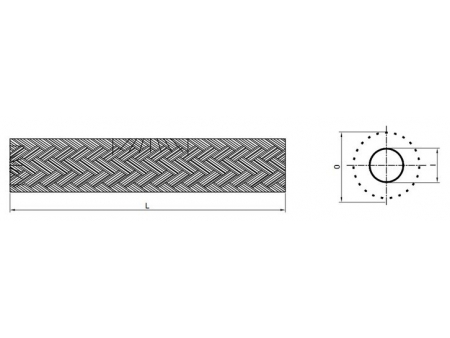

| Part No. | Nominal size (W) | Expandability | Packing (m/roll) | ||
| Min.(I) mm | Max.(O) mm | ||||
| PAF-003 | 3 | 2 | 4 | 350m | |
| PAF-006 | 6 | 4 | 7 | 350m | |
| PAF-008 | 8 | 5 | 9 | 350m | |
| PAF-010 | 10 | 6 | 11 | 350m | |
| PAF-012 | 12 | 8 | 13 | 300 m | |
| PAF-016 | 16 | 10 | 17 | 250 m | |
| PAF-019 | 19 | 12 | 20 | 200 m | |
| PAF-023 | 23 | 15 | 24 | 200 m | |
| PAF-025 | 25 | 16 | 26 | 200 m | |
| PAF-032 | 32 | 20 | 33 | 150 m | |
| PAF-038 | 38 | 24 | 39 | 100 m | |
| PAF-050 | 50 | 32 | 51 | 100 m | |
| PAF-063 | 63 | 40 | 64 | 100 m | |
