PCB Board Panel Stacking Machine Manufacturer

PCB Board Panel Stacking Machine

Request a Quote

View All: http://sheetingmachine.com/2-3-pcb-board-panel-stacking-machine.html

In order to lower labor costs, LEAD replaced manual operations with an automatic production line for the production of PCB board panels.

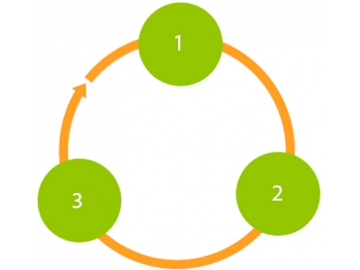

Manufacturing process

Automatic stack-up
Automatic breakdown
Automatic returning of steel plate

Capacity

Cycle time: less than 8.5 seconds
Single side: up to 280 000 layers/month

Features

Custom designing
Taking into full consideration the workshop layouts and requirements of different customers, the PCB board panel stacking machine can be custom designed to meet customer requirements, thus avoiding any problems during plate production.

Automatic production
The PCB board production line stacks, cuts and measures steel plates, as well as breaks down, returns and cleans them. This ensures production is simplified with a high degree of automation and low cost.

Low energy consumption
In order to decrease energy consumption, the capacity of every unit is calculated and custom designing is essential.

Components

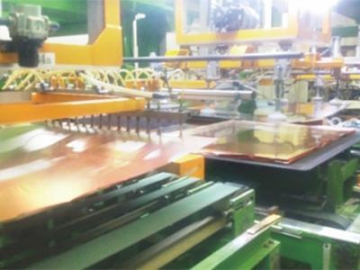

Suction hoist for steel plate

Uses
The Suction hoist can achieve automatic stack-up and breakdown of steel plate

Parameter

Mode: manipulator operation
Speed: 12 seconds/layer

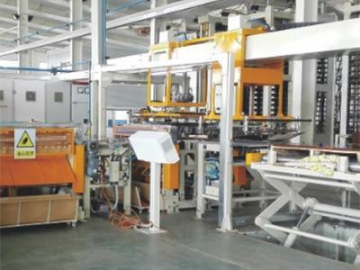

Suction hoist for automatic stack-up

Uses
Automatic arranging of plates

Parameter

Stack-up mode: automatic stack-up
Paper treatment method: automatic paper preparing by jetting air
Stack-up speed: 12 seconds/layer

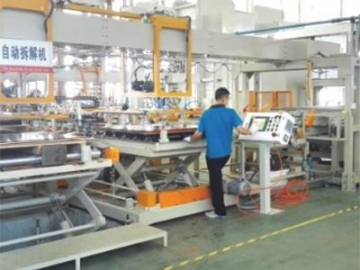

Suction hoist for automatic breakdown

Uses
The Suction hoist can separate steel plate and semi-finished PCB board

Parameter

Breakdown mode: manipulator separating;
Separating speed: 7.5 seconds/layer
Intelligent control: achieve remote monitoring, reserve PLC interface and ERP interface

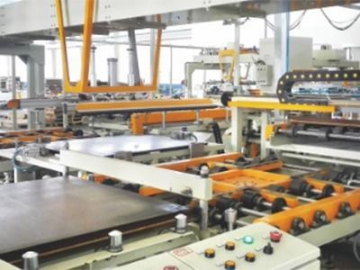

Automatic cutting machine

Uses
Cutting plates

Parameter

Cutting mode: automatic cutting;
Cutting accuracy: length error±0.5mm/m, diagonal error±1mm/m;
Cutting speed: 10layers/min;
Loading and unloading methods: automatically to up and down the plates by manipulator
Stack-up mode: automatically set on the stacking number;
