Silicone Insulated Constant Wattage Heating Cable, RGG

Request a Quote

View All: http://heattrace-cable.com/2-3-silicone-insulated-constant-wattage-heating-cable.html

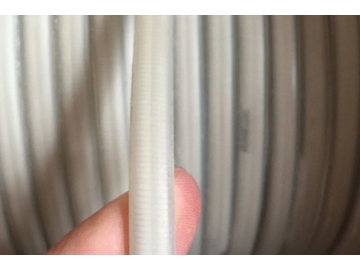

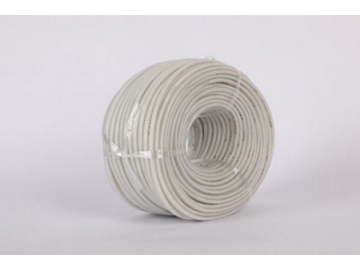

Shenzhuan RGG series silicone insulated constant wattage heating cable is perfectly suitable for maintaining temperatures of up to 180℃. Its great flexibility of temperature resistance range means that this silicone insulated constant power heating cable is ideally applicable for heat tracing in industrial refrigeration or in countries with very harsh climate conditions even at temperatures as low as -50℃.

Features

Excellent temperature resistance: The silicone-insulated heating cable is applied with silicone rubber as insulation and thermal conductivity material;
Cold tail incorporated: no extra connection necessary;
Hard-wearing and flexible:The silicone insulated constant power heating cable can be cut to length on site and it is particularly easy for installation;

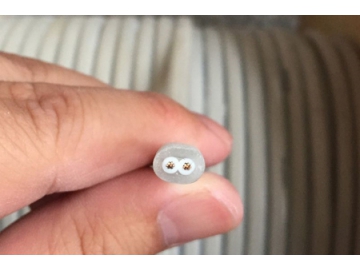

Extremely simple termination: With tinned copper braid and silicon elastomer outer sheath, this unique heat tracing cable is very flexible and apt to bend;
High thermal efficiency;
Welded contact points;

Technical Data

Adjustable voltage: 110V(120V), 220V(230V), 380V

Model	Voltage (V)	Nominal output (W/m)	Conductor size (mm² )	Heating elements	Accepted voltage (V)	Insulation resistance (MΩ/mm)	Max. circuit length (m)
RGG-25	24, 36, 110, 220 V	25	2×0.75	Copper-nickel alloy wire	AC3500V	≥ 200mn	65
RGG-40	24, 36, 110, 220 V	40	2×0.75	Copper-nickel alloy wire	AC3500V	≥200mn	50
RGG-50	24, 36, 110, 220 V	50	2×0.75	Copper-nickel alloy wire	AC3500V	≥200mn	44
Note：The above heating length, lead length, nominal voltage and power can be customized.

Applications
