Automatic Flatbed Die Cutter, MWZ 1620Nii

Request a Quote

View All: http://centurypack-intl.com/2-4-1-automatic-flatbed-die-cutter.html

Technical Parameters

Machine model	MWZ 1620Nii
Max. sheet size	1650 x 1210mm
Min. sheet size	650 x 500mm
Max. cutting size	1620 x 1190mm
Cutting force	Up to 300tons
Max. mechanical speed	4500 sheets per hour
Stock range	Corrugated sheet 1-8.5 mm
Height of cutting rule	23.8mm
Pressure adjustment	±1.5mm
Cutting precision	±0.5mm
Min. front waste	10mm
Chase size	1650x1220mm
Power consumption (without air pump)	37kW // 380V, 3-PH, 50 Hz
Machine dimensions	Length: 9500mm
	Width: 5560mm
	Height: 2600mm
Machine weight	28 Tons

Machine Details

Standard Lead Edge Feeder
- Lead edge feeder provides rapid and precise sheet feeding.

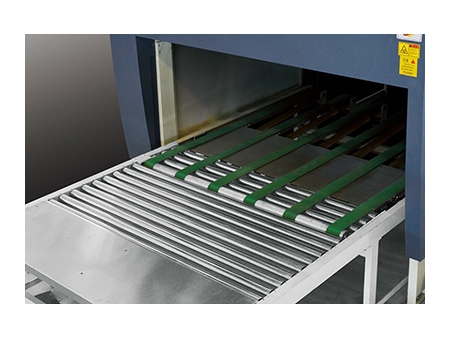

Feeding Table
- Left and right side push lays ensure the accuracy of sheet feeding.
- Servo driven conveyor transfers sheets to the die cutter accurately and efficiently.

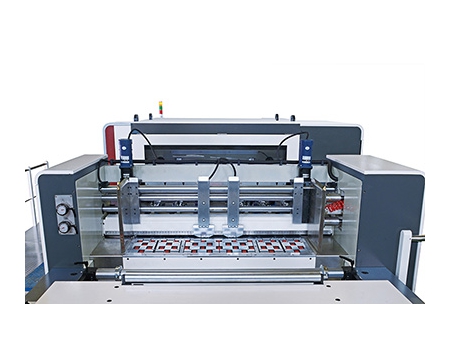

Die Cutting Section
- Central positioning system enables fast job changeover and simple machine set-up.
- Independent automatic self-lubrication system minimizes maintenance while ensuring smooth operation.
- Combination of advanced cam indexer and torsion clutch helps protect the die cutting machine from overload.
Stripping Section
- Central positioning system makes it easier to set up the stripping die and enables fast job changeover.
- Heavy duty double action stripper efficiently removes waste, male and female stripping tools are provided to adapt to various stripping tasks.
- Trim waste is removed by the front waste separator, and it is then conveyed by conveyor belt to the machine drive side.

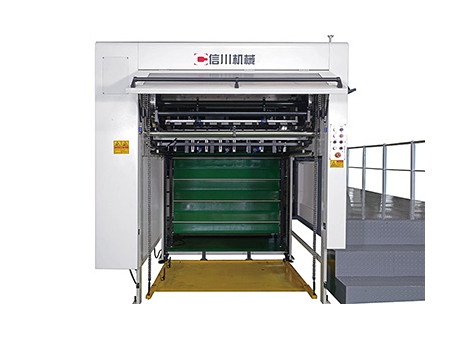

Delivery Section
- Automatic pallet delivery system achieves non-stop feeding, with machine height increased by 300mm.
